CROSS CONNECTOR TO SUIT 4MM A-SERIES TERMINALS 10P - ZQV 4N/10 RD

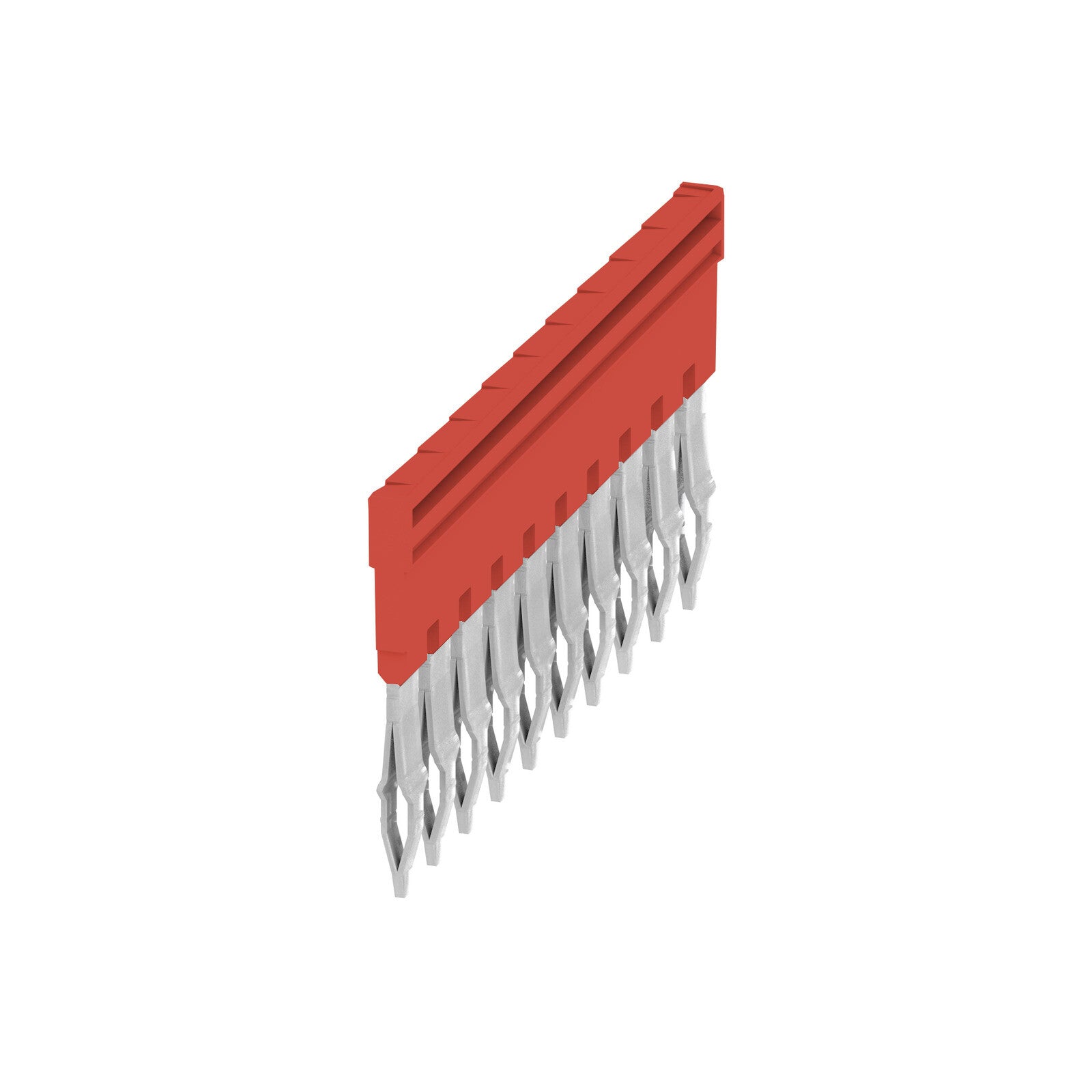

The Weidmüller ZQV 4N/10 RD is a 10-way insulated cross connector for A-series 4 mm² feed-through terminal blocks on 6.10 mm pitch, in red for distinguishing one potential group from another in the same row. It plugs into the terminal's cross-connection shaft and can be broken to length, though Weidmüller limits break-outs to 60 % of the contact elements for stability and temperature reasons.

• Suits: Weidmüller A-series 4 mm² feed-through terminal blocks, 6.10 mm pitch
• Number of poles: 10-way, pluggable
• Rated current: 32 A
• Rated voltage: 400 V (fitting a cross connector reduces the terminal's rated voltage to 400 V)
• Colour and insulation: Red, insulated Wemid, UL 94 V-0
• Dimensions (W x D x H): 58.7 mm x 27.95 mm x 2.8 mm
