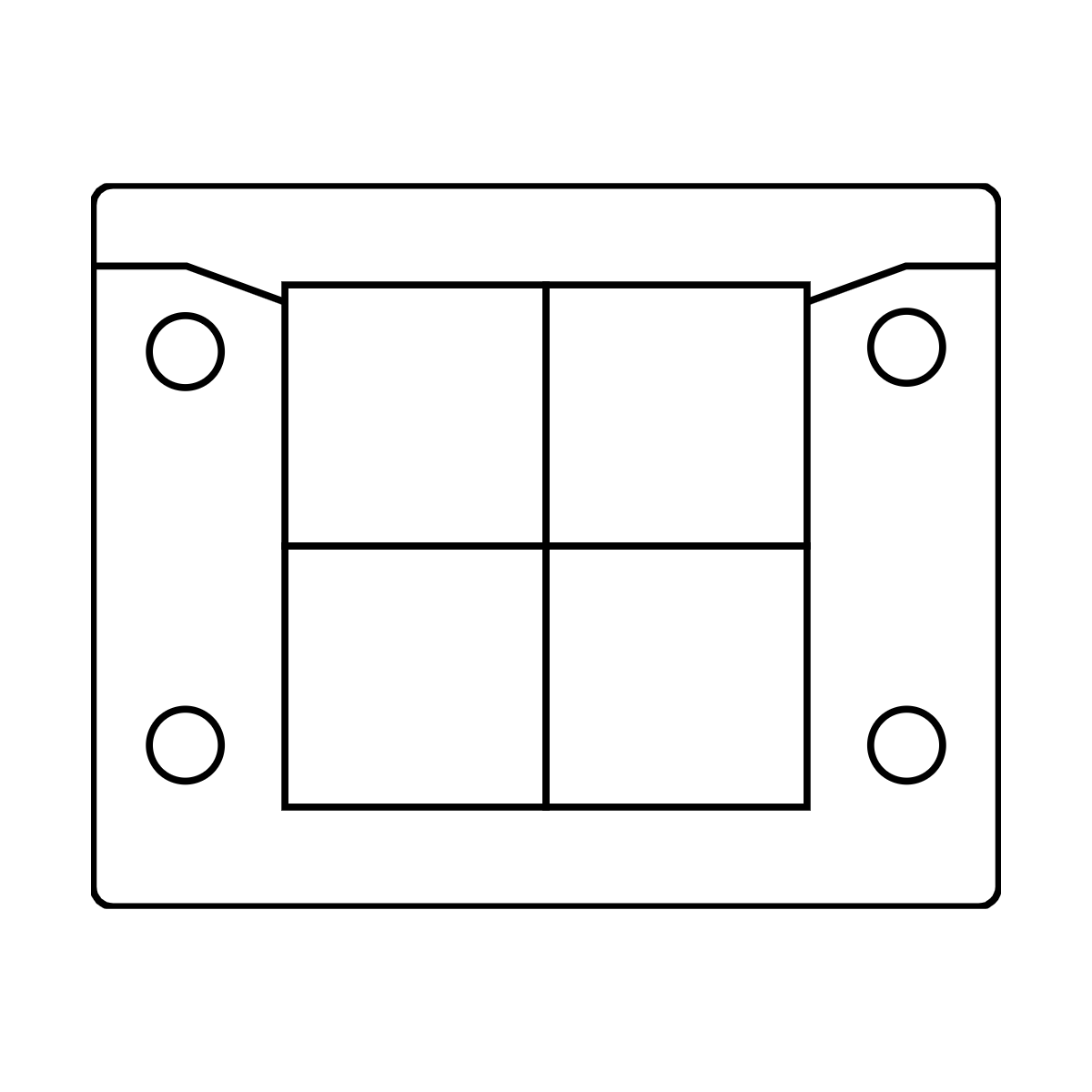

KEL-ERM B4 grommet layout – 4 x KT small grommets
icotek KEL-ERM cable entry frame with grommets and pre-terminated cables
icotek KEL-ERM cable entry frame with grommets and pre-terminated cables
icotek KEL-ERM cable entry frame with grommets and pre-terminated cables
icotek KEL-ERM cable entry frame with grommets and pre-terminated cables

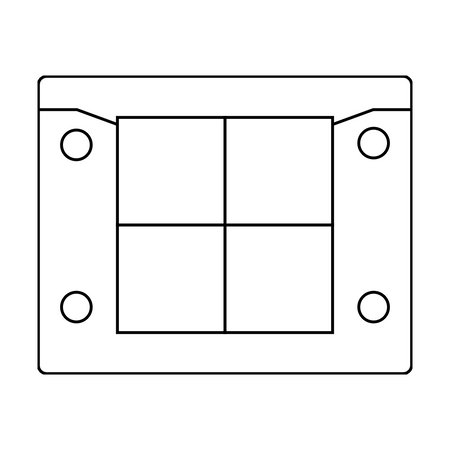

KEL-ERM B4 grommet layout – 4 x KT small grommets
icotek KEL-ERM cable entry frame with grommets and pre-terminated cables
icotek KEL-ERM cable entry frame with grommets and pre-terminated cables
icotek KEL-ERM cable entry frame with grommets and pre-terminated cables
icotek KEL-ERM cable entry frame with grommets and pre-terminated cables

Disclaimer: Images are for reference only. Refer to datasheets and drawings for accurate specifications.

Icotek

Split Cable Entry Frame IP65/66 for 4 x KT Small Grommets – KEL-ERM B4

SKU
$26.19 ex. GST $28.81 inc. GST
Restocking
0 in stockUpdated 2 minutes agoShipping & pickup →
  • Type Split Cable Entry Frame
  • Series KEL-ERM
  • Panel Cut-Out 46 × 46 mm
  • Material Polyamide
  • Colour Black
  • IP Rating IP66
  • Seal Type Injected Seal
  • Operating Temp -40°C to 140°C
  • Country of Origin DE
  • Standards
    • EN 60529
    • EN 62444
    • UL 50E
    • EN 45545-2
  • Certifications
    • UL
    • RoHS
  • Flammability Rating UL 94 V-0

Standards & certifications

IP66Dust-tight · powerful jets EN 60529Ingress protection UL 50EUS safety listed EN45 EN 45545-2 ULUS safety listed RoHSHazard-free IEC/EN 62444 Tested standards
Product Datasheet PDF Dimensional Drawing PDF CAD File STEP Product Brochure PDF

The KEL-ERM B4 is a split cable entry frame that routes up to 4 cables – including pre-terminated cables with connectors – into an enclosure through a standard 46 × 46 mm cut-out (as used for controllers and meters). It holds 4 x KT small grommets (sold separately), so cables can be added or changed without removing the connectors.

KEL-ERM is icotek's further development of the proven KEL-ER range and is the direct upgrade for the KEL-ER-B4 (48204). It fits the same cut-out and adds a factory-injected seal, so no separate flat gasket is needed, plus certified protection to IP66 with single grommets and up to IP65 with multi-cable grommets.

Features

  • IP66 with single grommets, IP65 with multi-cable grommets (EN 60529)
  • Keeps the manufacturer's warranty on pre-terminated cables
  • Injected seal – no separate gasket to fit or forget
  • Strain relief to EN 62444
  • Grommets lock automatically into the frame; cover screws down to close
  • Cables from 1 to 35 mm, depending on the grommets used
  • Compatible with IMAS-CONNECT adapter grommets

Specifications

Grommet positions 4 x KT small grommets
Cut-out 46 × 46 mm
Frame size (W × H × D) 72.8 × 65 × 22 mm
Fixing 4 × Ø5.5 mm holes, 58 × 32 mm centres
Screws Standard
Material Polyamide (PA), TPE seal
Colour Black
IP rating IP66 with single grommets, IP65 with multi-cable grommets (EN 60529:2014-09)
UL UL Type 12 and 4X (4X indoor use only)
Flame class UL 94 V-0, self-extinguishing
Operating temperature -40°C to +140°C (static)
Properties Halogen free, silicone free

Note: KT grommets are ordered separately. Choose grommets to suit each cable diameter.
