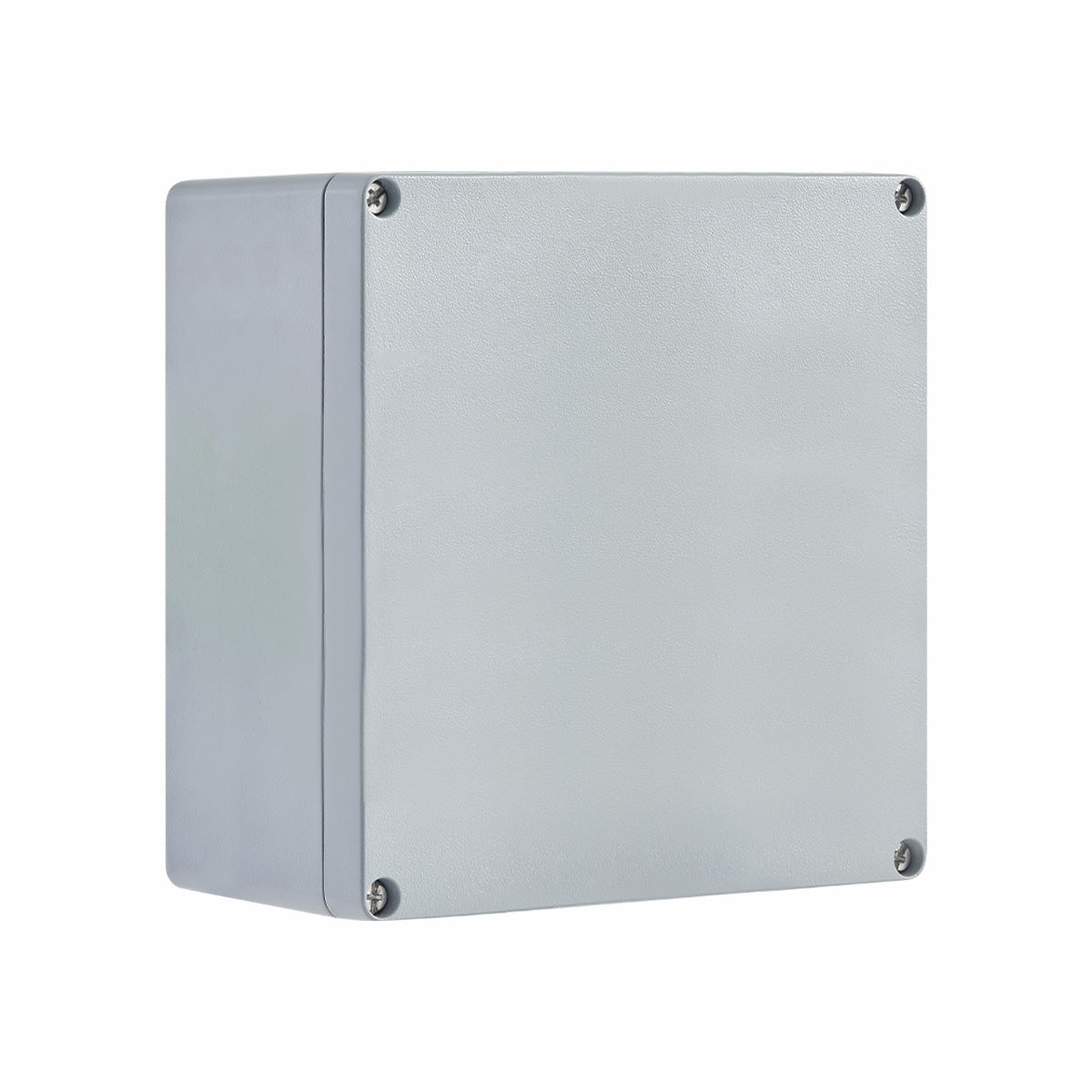

Aluminium Terminal Box 234x204x111 IP66/67/68 | ALN-232011 | RAL 7001 Grey.
The Fibox Euronord Aluminium Enclosure (ALN 232011) is an industrial-grade aluminium terminal box engineered for demanding electrical and instrumentation applications. Measuring 234H x 204W x 111D, this enclosure combines robust die-cast aluminium construction with precision IP66/67/68 sealing to protect sensitive equipment in harsh indoor and outdoor environments.
Key Features:
Die-Cast Aluminium Construction
Manufactured from high-grade aluminium finished in RAL 7001 Silver Grey, this enclosure delivers superior corrosion resistance, mechanical strength, and long-term durability — ideal for industrial, marine, and outdoor installations.
IP66/67/68 Triple Protection Rating
Rated IP66, IP67, and IP68, this enclosure provides complete dust-tight protection and resists powerful water jets, temporary immersion, and continuous submersion — exceeding requirements for the most demanding environments.
DIN Rail and Terminal Block Ready
Designed to house DIN Rail-mounted terminal blocks and a wide variety of sensors, the base includes mounting provisions for rails and mounting plates, simplifying installation and wiring.
PUR Gasket Sealing
A precision-moulded polyurethane (PUR) gasket ensures a consistent, reliable seal between the base and cover. The cover is secured with captive stainless steel screws that fully tighten in just 4 revolutions for fast, tool-friendly access.
IK08 Impact Resistance
Rated IK08 for impact resistance, the ALN-232011 withstands mechanical shocks up to 5 joules, making it suitable for vibration-prone industrial installations.
Gate-Mark Free Exterior
The smooth, gate-mark free outer surface provides an ideal area for labels, decals, or screen printing — supporting clear equipment identification in the field.
Technical Specifications:
- Dimensions: 234H x 204W x 111D mm
- Material: Die-cast aluminium
- Colour: RAL 7001 Silver Grey
- IP Rating: IP66 / IP67 / IP68
- Impact Rating: IK08
- Gasket: Polyurethane (PUR)
- Cover fixings: Captive stainless steel screws (4-revolution closure)
- Operating temperature: -40°C to +80°C (continuous), -50°C to +140°C (short term)
