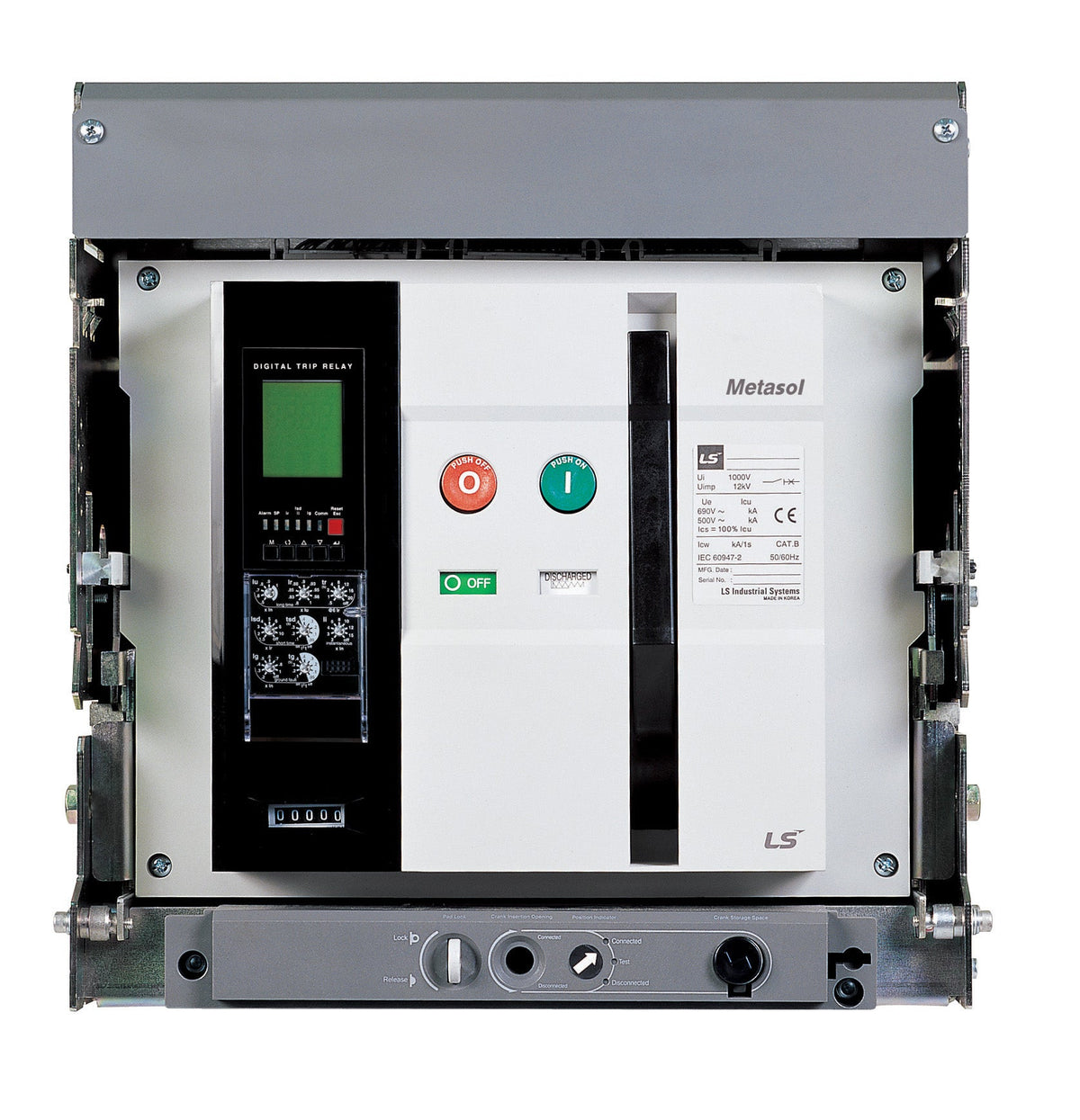

AS-25E3-25A 2500A 3P Air Circuit Breaker Drawout with Cradle | LS Electric

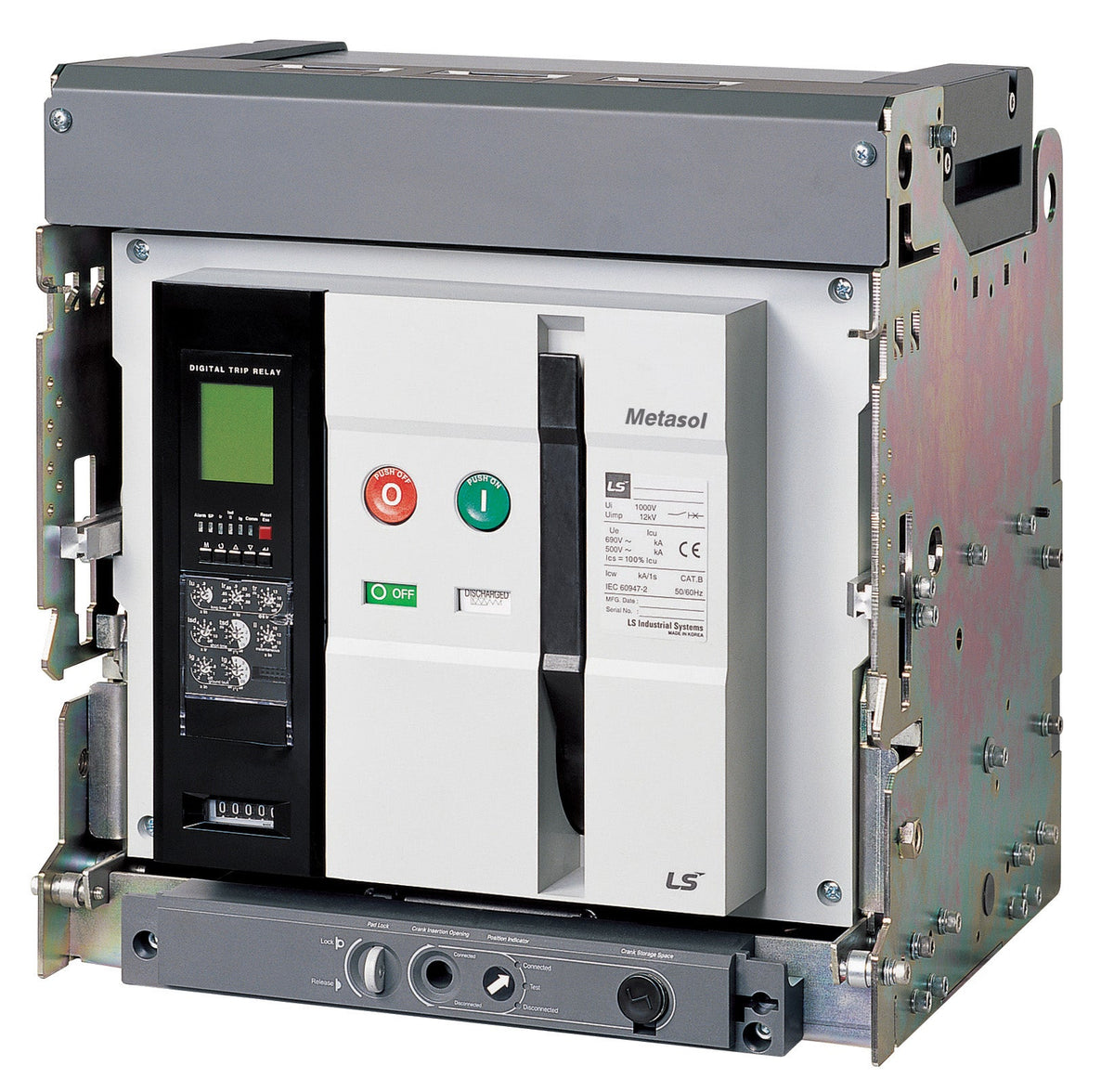

AS-25E3-25A Air Circuit Breaker and AL-S20~25E3-AVFN Cradle | LS Electric
AS-25E3-25A 2500A 3P Air Circuit Breaker Drawout with Cradle | LS Electric
AS-25E3-25A Air Circuit Breaker and AL-S20~25E3-AVFN Cradle | LS Electric

Disclaimer: Images are for reference only. Refer to datasheets and drawings for accurate specifications.

LS Electric

AS-25E3-25A 2500A 3P | LS Metasol 85kA Air Circuit Breaker Drawout, Smart Trip + Vertical Cradle

SKU
$7,132.84 ex. GST $7,846.12 inc. GST
Restocking
Stock on hand
NSW WarehouseAuburn, NSW 2144
0 in stock
QLD WarehouseBells Creek, QLD 4551
0 in stock
VIC WarehouseEpping, VIC 3076
0 in stock
Updated 1 minute ago
Shipping & pickup →
  • Weight (kg) 85
  • Voltage 690VAC
  • Current 2500A
  • Poles 3 Pole
  • Contacts 3NO+3NC
  • Size E Frame

Standards & certifications

CEEU conformity IEC/EN 609471 · 609472 Tested standards
Product Brochure PDF

AS-25E3-25A 2500A 3P | LS Metasol 85kA Air Circuit Breaker Drawout, Smart Trip + Vertical Cradle

LS Electric AS-25E3-25A: A 2500A drawout ACB for large main switchboards and transformer incomers, pairing an 85kA E-frame breaker with a vertical-terminal cradle. This is the current stocked 2500A drawout configuration.

Features and Specifications

  • Rated current (In): 2500A, 3 pole
  • Rated operational voltage (Ue): 690VAC, 50/60Hz. Rated insulation voltage (Ui): 1000V. Rated impulse withstand (Uimp): 12kV
  • Rated ultimate breaking capacity (Icu): 85kA at 220–415V, 85kA at 550–690V. Service breaking capacity Ics = 100% Icu
  • Rated making capacity (Icm): 187kA peak at 415V
  • Rated short-time withstand (Icw): 85kA 1s / 75kA 2s / 65kA 3s
  • Frame: E-frame. Mechanical life 15,000 operations, electrical life 5,000 operations
  • Dimensions (drawout with cradle, H x W x D): 430 x 412 x 375 mm
  • Mounting: Drawout, supplied with AL-S20~25E3-AVFN vertical drawout cradle (automatic connection, vertical terminals, safety shutter)
  • Trip relay: A-type (ammeter) electronic trip relay with L, S, I and G protection, 50Hz self-powered (AH5)
  • Options fitted: Manual spring charging (no motor), no closing coil, no shunt trip, 3a3b auxiliary contacts (OFF-charge), no UVT, On/Off button lock
  • Operating temperature: −20°C to +60°C (derating above 45°C)

Standards (& Conformities): IEC 60947-1, IEC 60947-2, CE. Approvals: KEMA, KERI, KS, GOST.

Ordering Code:

AS-25E3-25A MAD0D0AX AH5U0B + AL-S20~25E3-AVFN

What's Included: AS-25E3-25A air circuit breaker and AL-S20~25E3-AVFN drawout cradle.

Full ratings, trip curves and accessories: LS Susol & Metasol ACB catalogue.
