Home » Circuit Protection & Control » 77123460201 | ACB Shunt Trip DC 24–30V to Suit LS ACBs

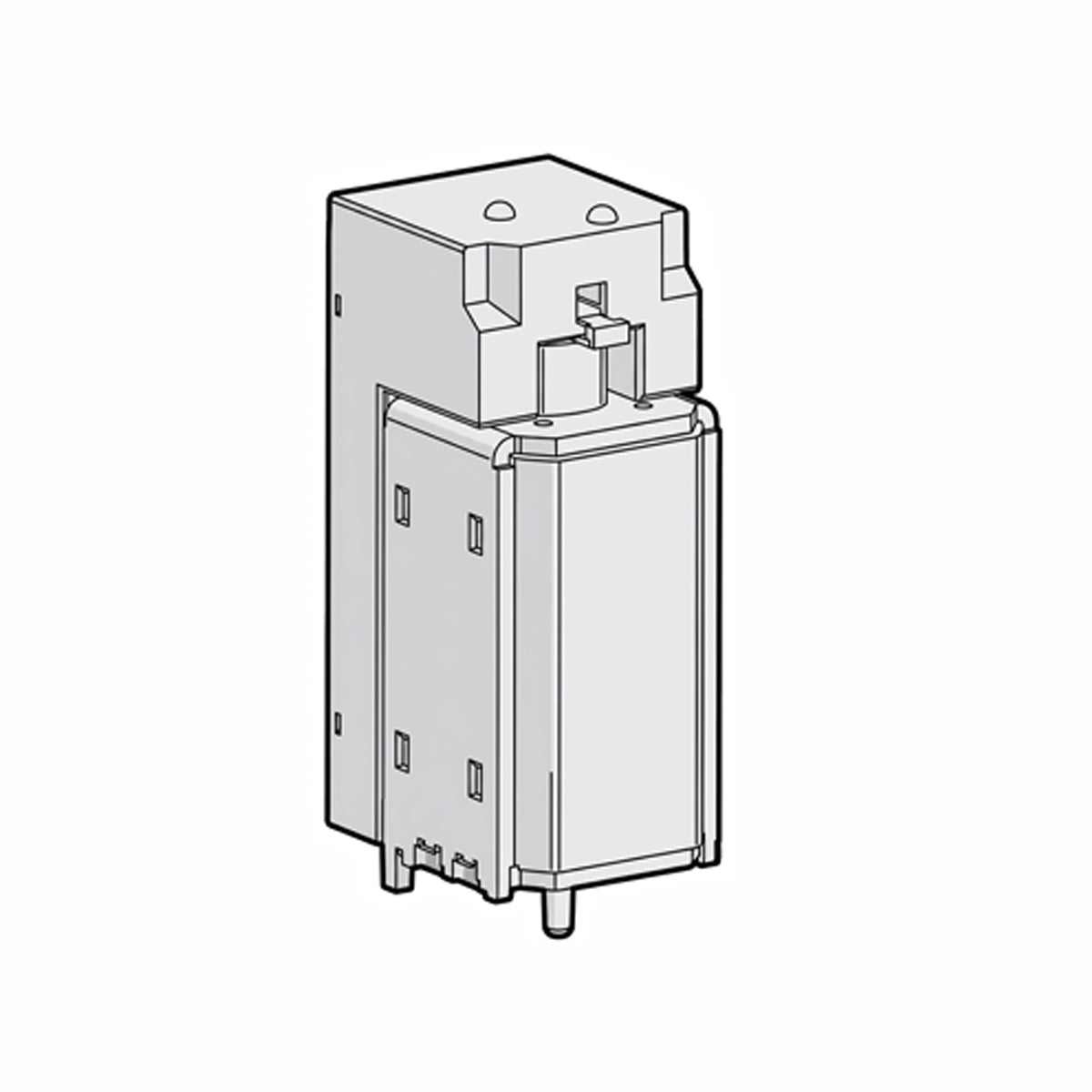

ACB Shunt Trip DC 24–30V for SUSOL ACBs — LS Electric
ACB Shunt Trip DC 24–30V for SUSOL ACBs — LS Electric

Disclaimer: Images are for reference only. Refer to datasheets and drawings for accurate specifications.

LS Electric

77123460201 | ACB Shunt Trip DC 24–30V to Suit LS ACBs

SKU
$114.39 ex. GST $125.83 inc. GST
In stock
2 in stockUpdated 3 minutes agoShipping & pickup →
  • Type Shunt Trip
  • Country of Origin KR
Product Brochure PDF

77123460201 | ACB Shunt Trip DC 24–30V to Suit LS ACBs

LS Electric 77123460201: A 24–30V DC shunt trip release for opening LS ACBs remotely from an emergency stop, fire panel or protection relay on a low-voltage DC control supply.

Features and Specifications

  • Rated voltage: DC 24–30V
  • Operating range: 70–110% of rated voltage
  • Power consumption: 200W inrush, 5W steady state
  • Opening time: less than 40ms
  • Signal: continuous, or a pulse longer than 200ms

What's Included: Shunt trip release (LS item code 77123460201).

Accessory details and compatibility: LS Susol & Metasol ACB catalogue.
