72313460504 | ACB Charging Motor AC/DC 200–250V to Suit AN, AS & AH ACBs (D, E, F, G Frame)
- Type
- Country of Origin
72313460504 | ACB Charging Motor AC/DC 200–250V to Suit AN, AS & AH ACBs (D, E, F, G Frame)

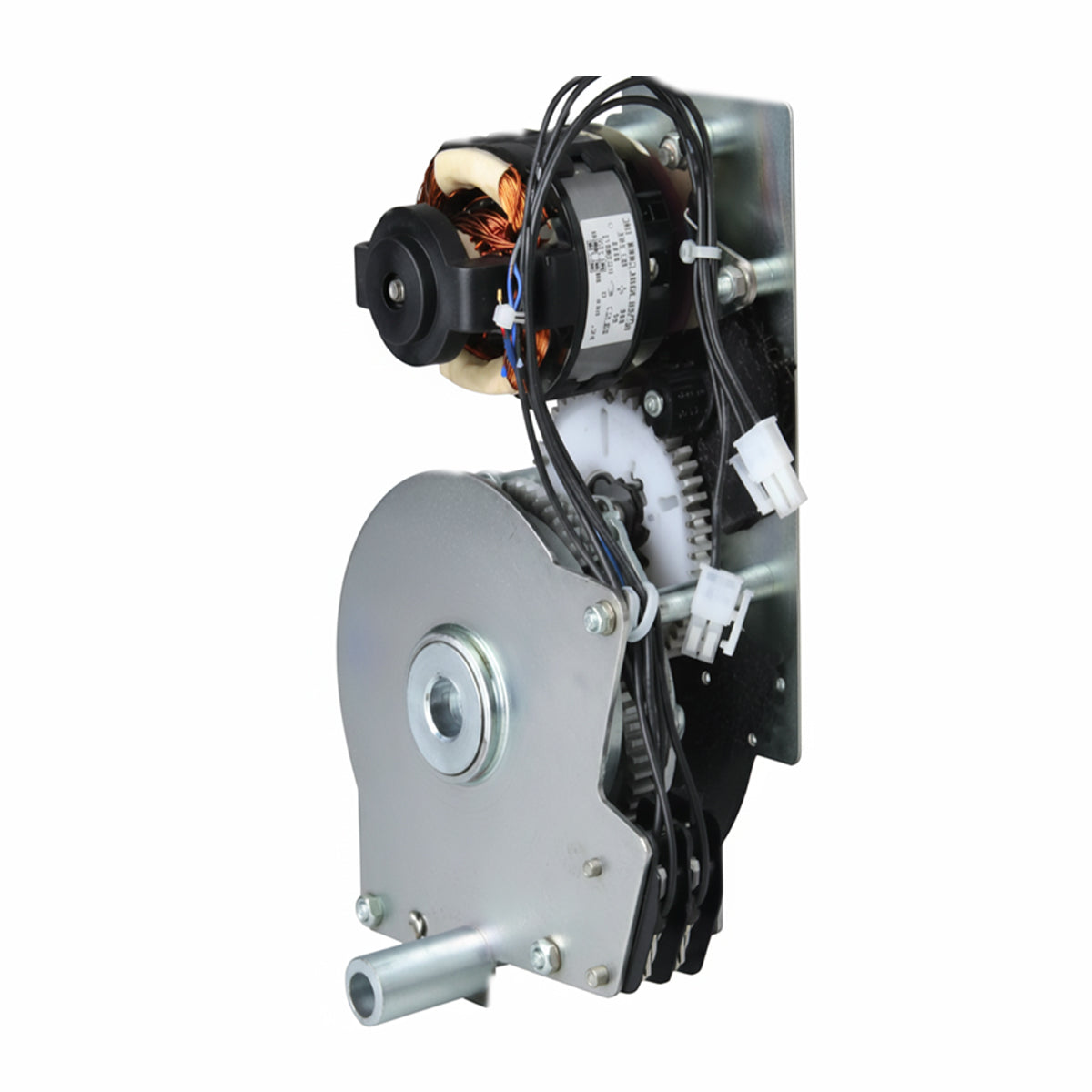

LS Electric 72313460504: A geared spring-charging motor, rated AC/DC 200–250V, for Metasol AN and AS and Susol AH ACBs across the D, E, F and G frames. It automatically recharges the closing springs after each close, as needed for remote or automatic closing schemes such as changeover and generator incomers.
Features and Specifications
- Rated voltage: AC/DC 200–250V
- Compatible breakers: Metasol AN, AS and Susol AH, D, E, F and G frames
- Operating range: 85–110% of rated voltage
- Load current: 0.5A max (starting current approx. 5x load current)
- Spring charging time: less than 5 seconds
- Charge-complete switch: 10A at 250VAC
- Dielectric strength: 2kV for 1 minute
What's Included: Charging motor (LS item code 72313460504).
Accessory details and compatibility: LS Susol & Metasol ACB catalogue.
Note: Please choose product carefully. Product selection is the responsibility of the Purchaser. Refer to relevant Standards, project requirements and technical specifications to ensure that the product meets requirements. Contact TROPAC for selection support.
