8 Port (6 x RJ45, 2 x SFP Slot) Unmanaged Network Switch, Fast Ethernet - IE-SW-ELB-08-6TX-2FESFP

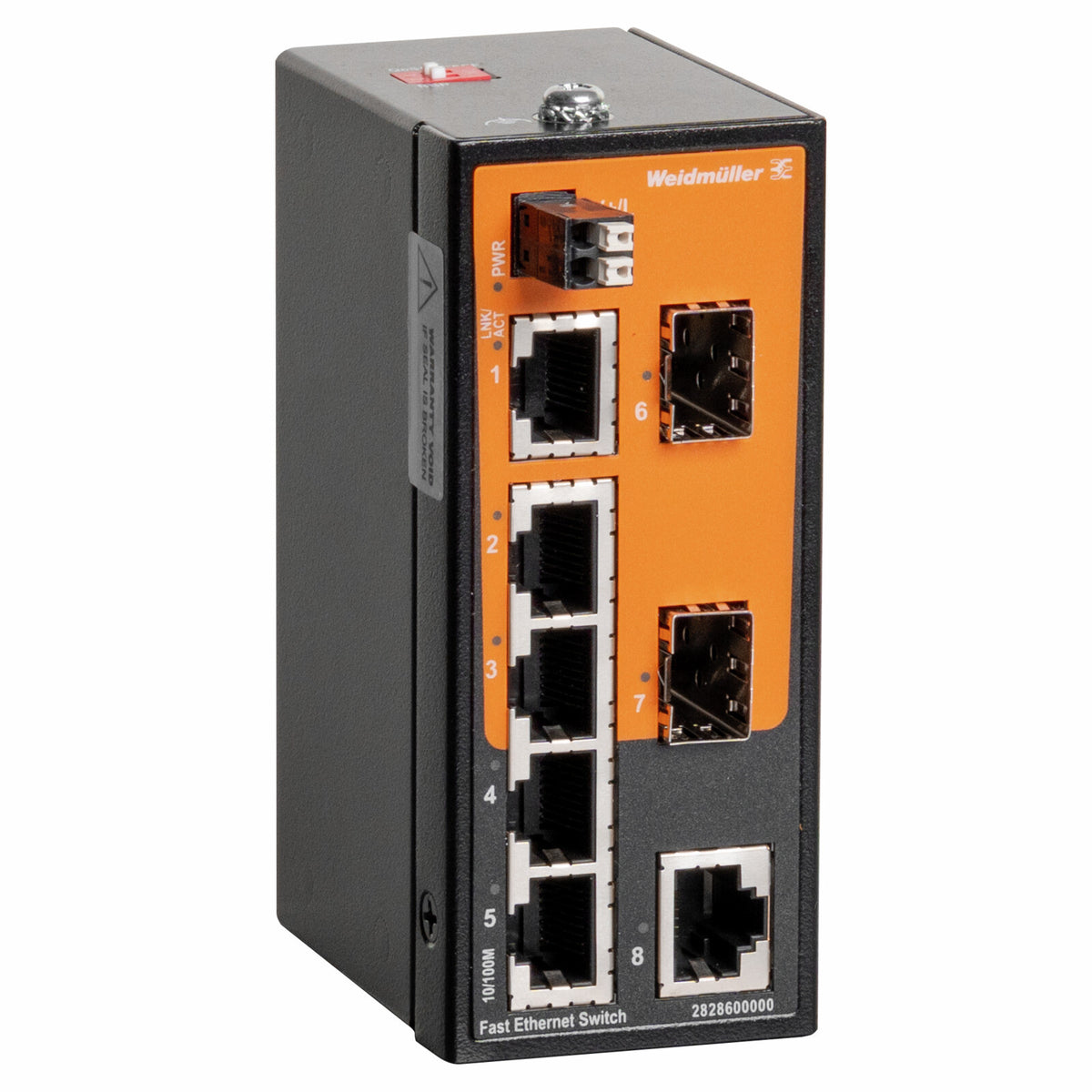

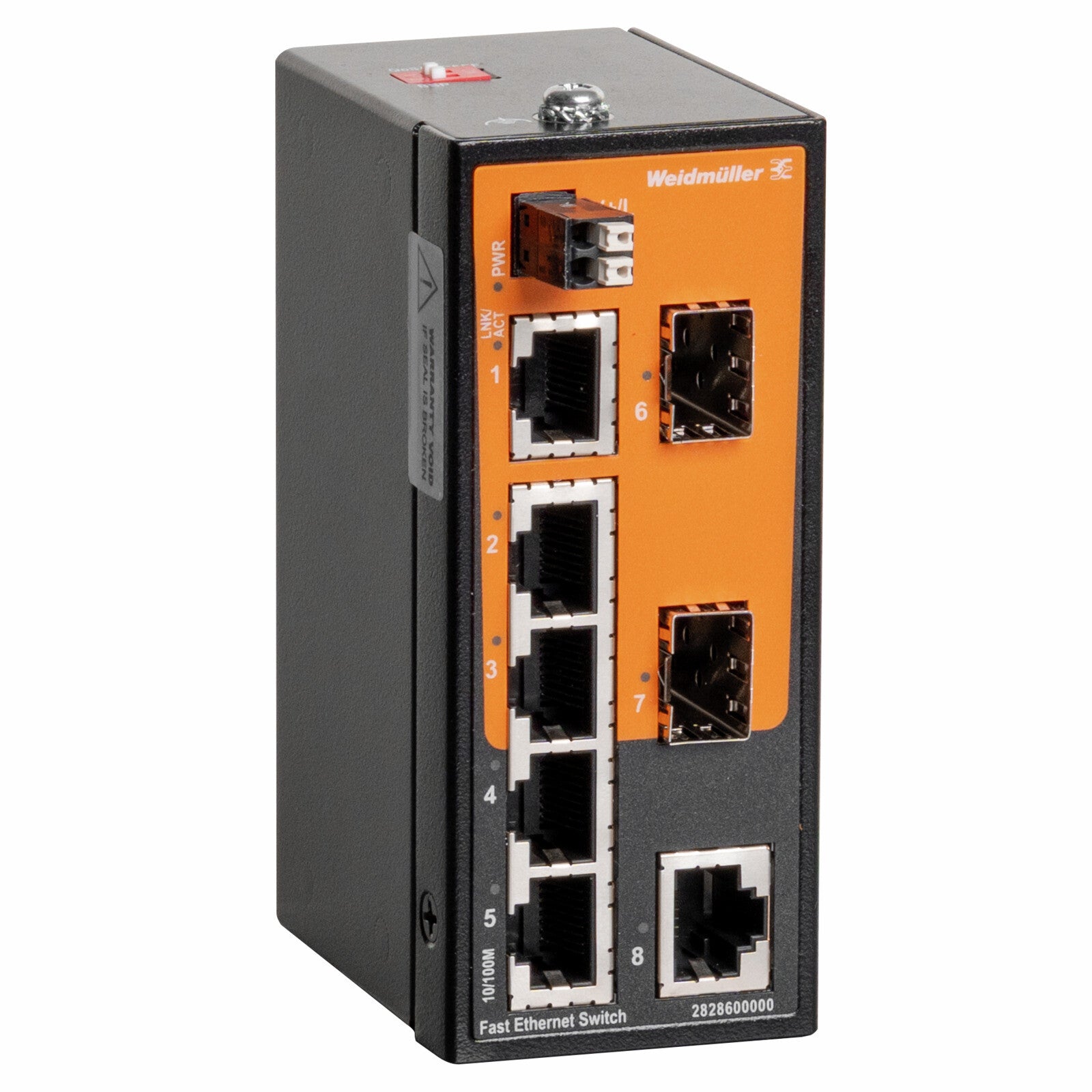

The Weidmüller IE-SW-ELB-08-6TX-2FESFP is an eight-port unmanaged Fast Ethernet switch that combines 6 x RJ45 copper ports with 2 x 100BaseSFP slots, so a fibre uplink can be taken straight out of the switch without a media converter. It runs from a single wide-range input of 9.6 to 60 V DC (or 18 to 36 V AC) and is housed in an IP40 metal enclosure 43.5 mm wide.

• Ports: 6 x RJ45, 10/100BaseT(X)
• SFP slots: 2 x 100BaseSFP
• Transmission speed: Fast Ethernet, 1 Gbit/s backplane bandwidth
• Supply voltage: 12/24/48 V DC (9.6 to 60 V DC) or 24 V AC (18 to 36 V AC)
• Supply inputs: 1, removable 2-pin terminal block with reverse polarity and overload protection
• Current consumption: 0.25 A at 24 V
• Alarm contact: Not fitted
• MAC address table: 2 K entries, 768 kbit packet buffer, four priority queues
• MTBF: 1,852,856 h at 25 °C (Telcordia SR-332)
• Operating temperature: −40 °C to +75 °C
• Dimensions (W x H x D): 43.5 x 103 x 64 mm
• Mounting: DIN rail
• Housing: Metal, 200 g
• Protection degree: IP40
• Approvals: cULus (E141197), EN 55032, FCC Part 15 Subpart B Class A, RoHS
