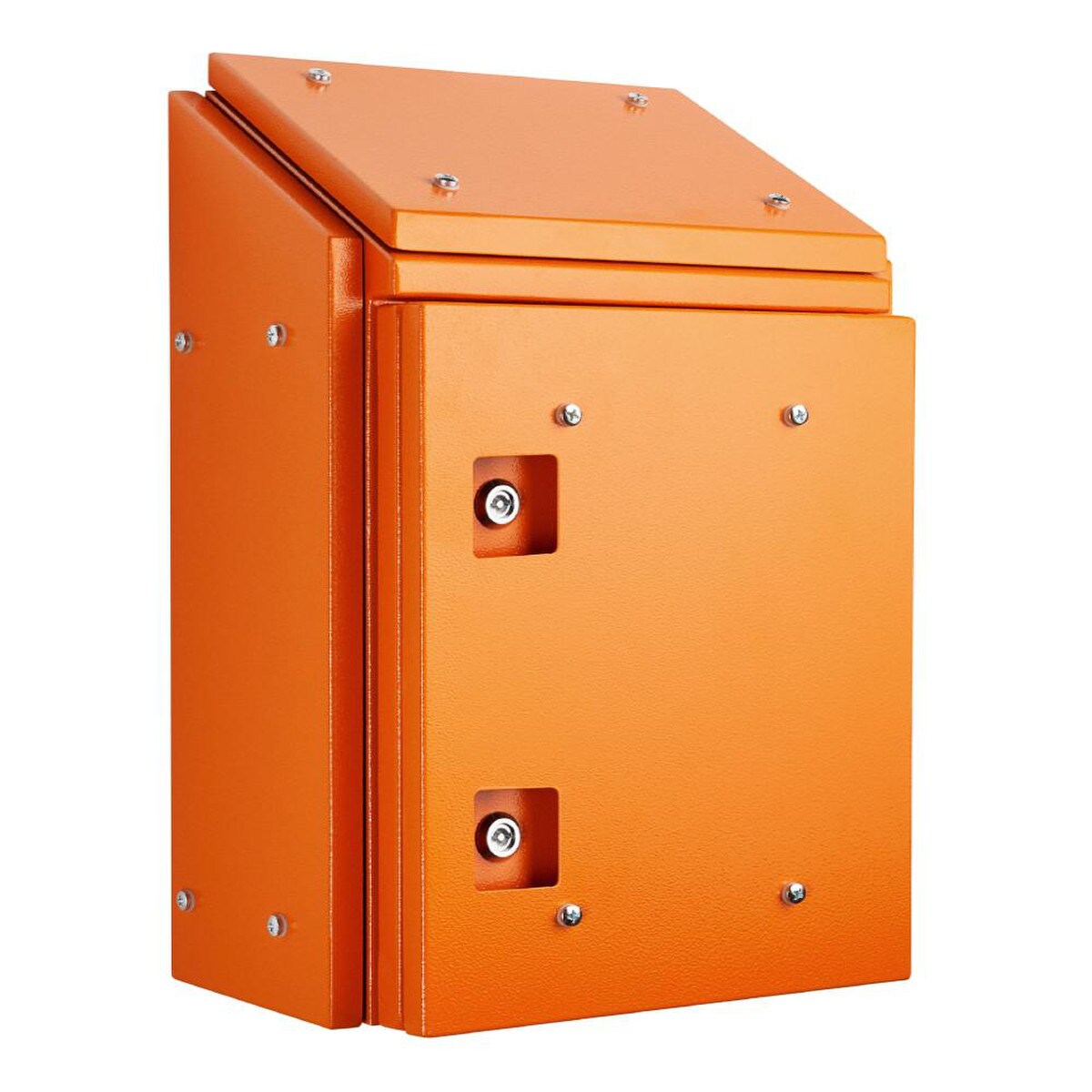

Sloping Roof Electrical Enclosure with Sunshield 400H x 400W x 200D IP66 Orange, Heavy Duty, additional product view
Sloping Roof Electrical Enclosure with Sunshield 400H x 400W x 200D IP66 Orange, Heavy Duty | IP Enclosures

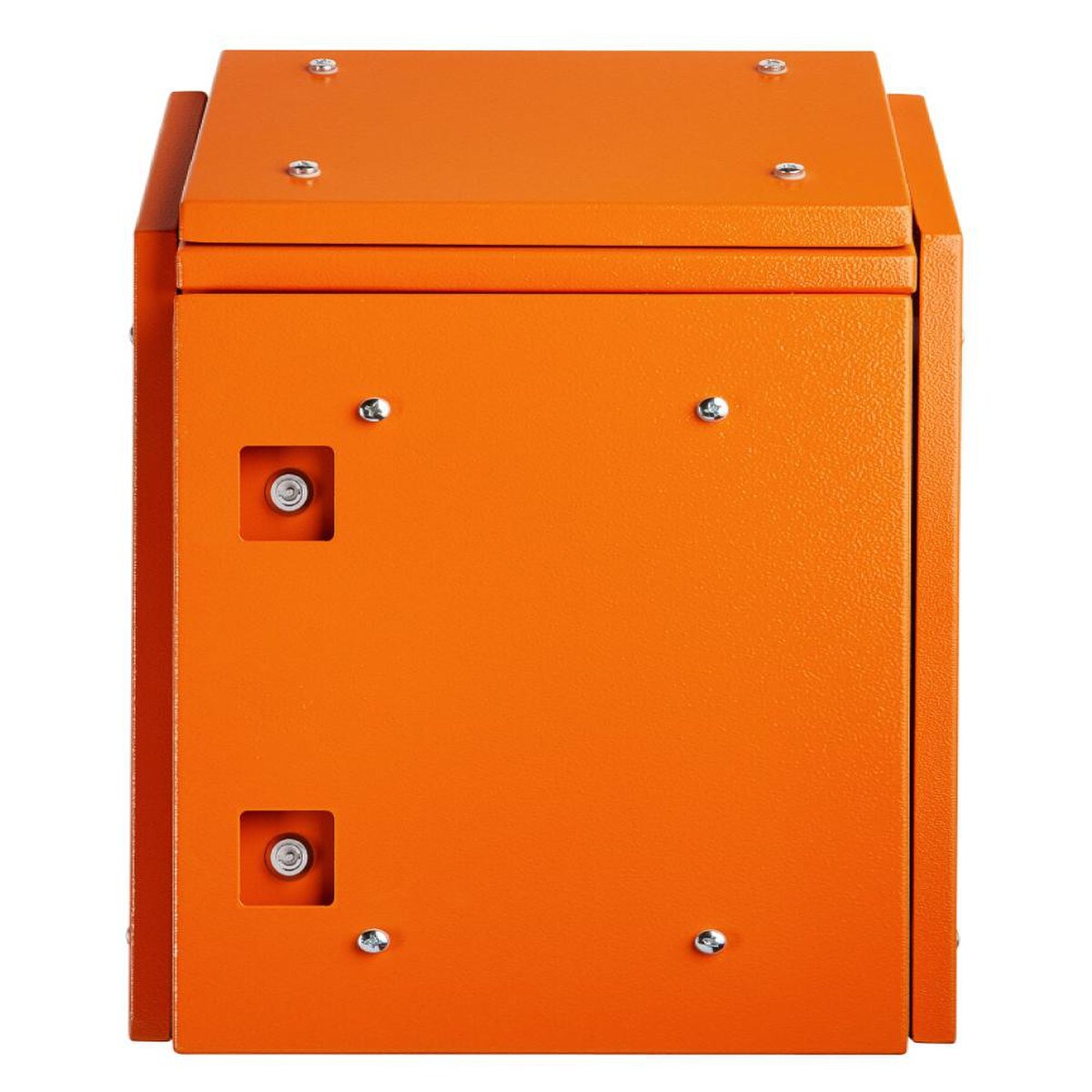

Sloping Roof Electrical Enclosure with Sunshield 400H x 400W x 200D IP66 Orange, Heavy Duty, additional product view

Disclaimer: Images are for reference only. Refer to datasheets and drawings for accurate specifications.

IP Enclosures

Sloping Roof Electrical Enclosure with Sunshield 400H x 400W x 200D IP66 Orange, Heavy Duty

SKU
$201.33 ex. GST $221.46 inc. GST
-74% Clearance $781.86 AUD
$201.33 ex. GST $221.46 inc. GST

Online Clearance Pricing only. Non-cancellable and non-returnable.

In stock
2 in stockUpdated 1 minute agoShipping & pickup →
  • Series SSR1
  • Height (mm) 400
  • Width (mm) 400
  • Depth (mm) 200
  • Material Galvanised Steel
  • Colour RAL2000 Orange
  • Finish UL Approved Epoxy Polyester Powder Coat
  • IP Rating IP66
  • IK Rating IK10
  • Seal Type Polyurethane FIP
  • Lock Type 5mm Double Bit Quarter Turn
  • Door Type Single Door
  • Mounting Plate
  • Operating Temp −40°C to +80°C
  • Standards
    • IEC 62208
    • IEC/EN/AS60529
  • Certifications
    • NEMA
    • RoHS

Standards & certifications

IP66Dust-tight · powerful jets IK10Impact rated IEC/EN/AS60529Ingress protection NEMAUS enclosure rating RoHSHazard-free IEC/EN 62208 Tested standards
Product Datasheet PDF Dimensional Drawing PDF Dimensional Drawing DWG

Sloping Roof Electrical Enclosure with Sunshield 400H x 400W x 200D IP66 Orange, Heavy Duty

At 400×400×200mm, this heavy-duty SSR1 enclosure gives outdoor switch and control gear a mid-size housing with sun shields fitted to its outer surfaces to limit heat build-up in direct sun, while the sloping roof stops dust, debris and rain settling on top.

Features and Specifications

Protection: IP66 IK10, NEMA 4 (Independent accredited test laboratory).

Standards (& Conformities): IEC 62208, IEC/EN/AS60529, NEMA 4, RoHS.

Material:

Body & Sun Shields: 1.2 to 2.0mm galvanised steel sheet
Door: 1.2 to 2.0mm galvanised steel sheet
Device Mounting Plate: 1.5mm galvanised steel sheet
Seal: Polyurethane, UL listed

Enclosure Body & Sun Shields:

The robust monoblock body with sloping roof is fabricated using 1.2 to 2.0mm galvanised steel sheet. Flat face sealing surfaces are provided to increase seal life. Pre-fitted blind nutserts are incorporated to accommodate mounting. The roof consists of a sloped roof design that protrudes past the seal. Sun shields are provided with spacers to offset the surface of the shield from the surface of the enclosure.

Enclosure Door:

The robust surface mounted door is fabricated using 1.2 to 2.0mm galvanised steel sheet and incorporates concealed removable hinges with captive pins. The door is designed for a 110° opening. Each door contains cable management rails, an M6 earth stud and a high quality machine-applied foamed in place (FIP) Polyurethane seal.

Enclosure Seal:

UL listed Polyurethane seal, foamed in place (FIP). Temperature resistance −40°C to +80°C.

Enclosure Lock:

Chrome 5mm double bit insert quarter turn lock with key.

Device Mounting Plate:

1.5mm galvanised steel sheet.

Surface Treatment:

UL approved polyester powder coated with a smooth finish, 80-120 micron average thickness, in RAL2000 Orange.

What's Included: Enclosure with sun shields fitted, device mounting plate, lock and key.
