Cable entry, sealed and strain-relieved in one frame.
What are you routing?
Start with the cable — we'll point you to the right frame, grommet or gland.
The icotek range.
Cable management for control panels, enclosures and machines, stocked in Australia. Split entry frames, grommets, membrane plates, glands and hygienic entries — routing, sealing and strain relief in one system, up to IP66 / UL Type 4X.
For routing many cables — with or without connectors — through one panel cut-out. Centrally split KEL frames take KT grommets sized to each cable, sealing and strain-relieving in a single frame. The default starting point for most panel builds.

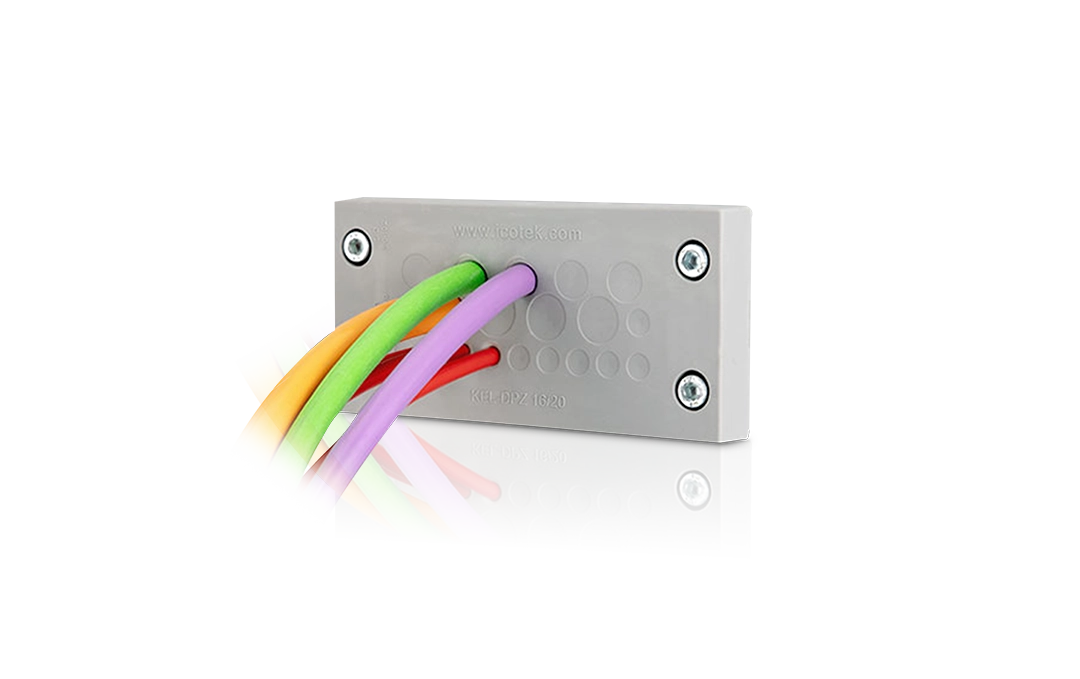

For sealing a handful of individual cables with the fastest install — no frame, no grommets. Snap-in or screw-in as each cable passes straight through the membrane. (Routing many cables through one cut-out? Use a KEL frame.)

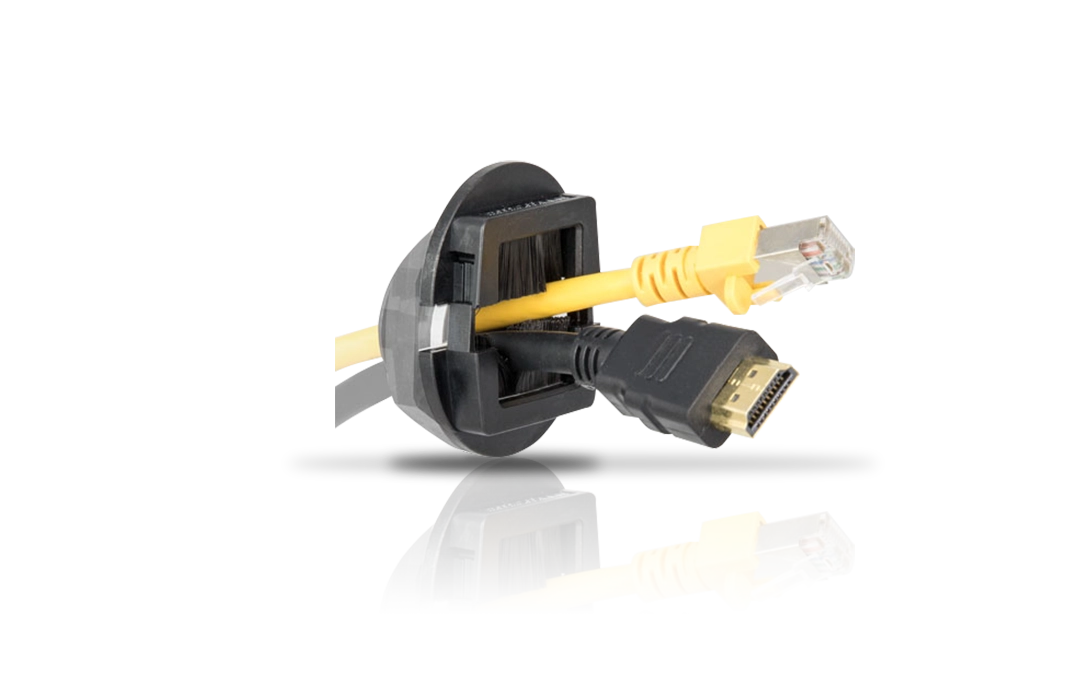

For routing high counts of unterminated cables that change often, where dust and particle reduction matters more than a full IP seal. Screw or snap fit to suit the panel. (Need a sealed rating? Use membrane plates or a KEL frame.)

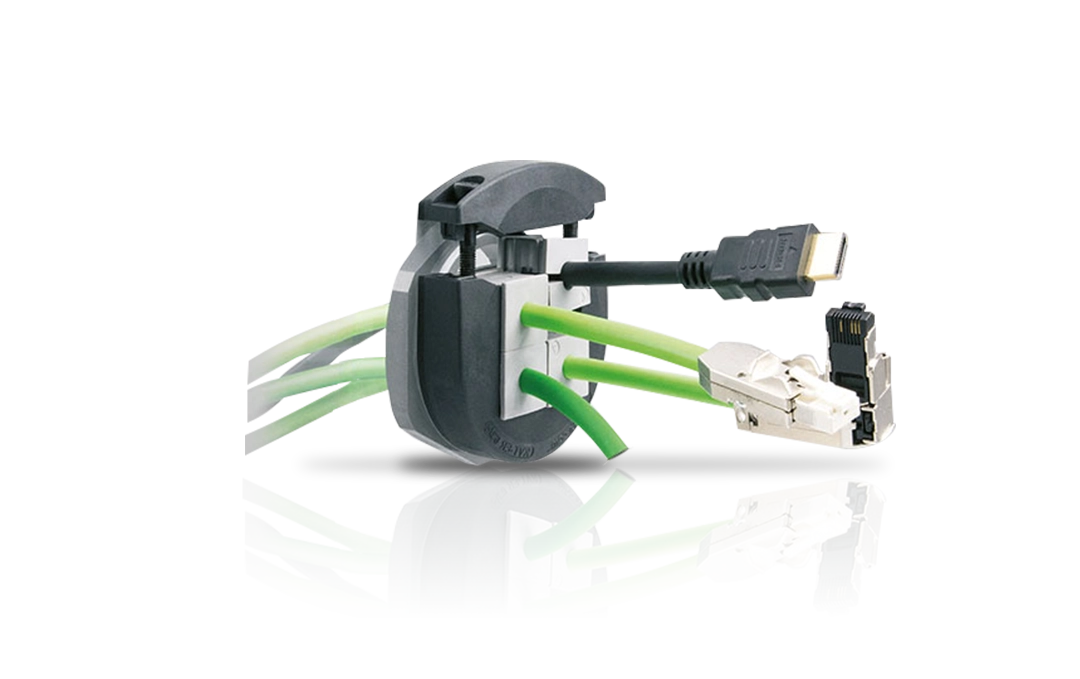

For sealing a single pre-terminated cable at an existing gland point without cutting the connector off. KVT split glands guide and re-route on a standard gland thread — the fastest retrofit.

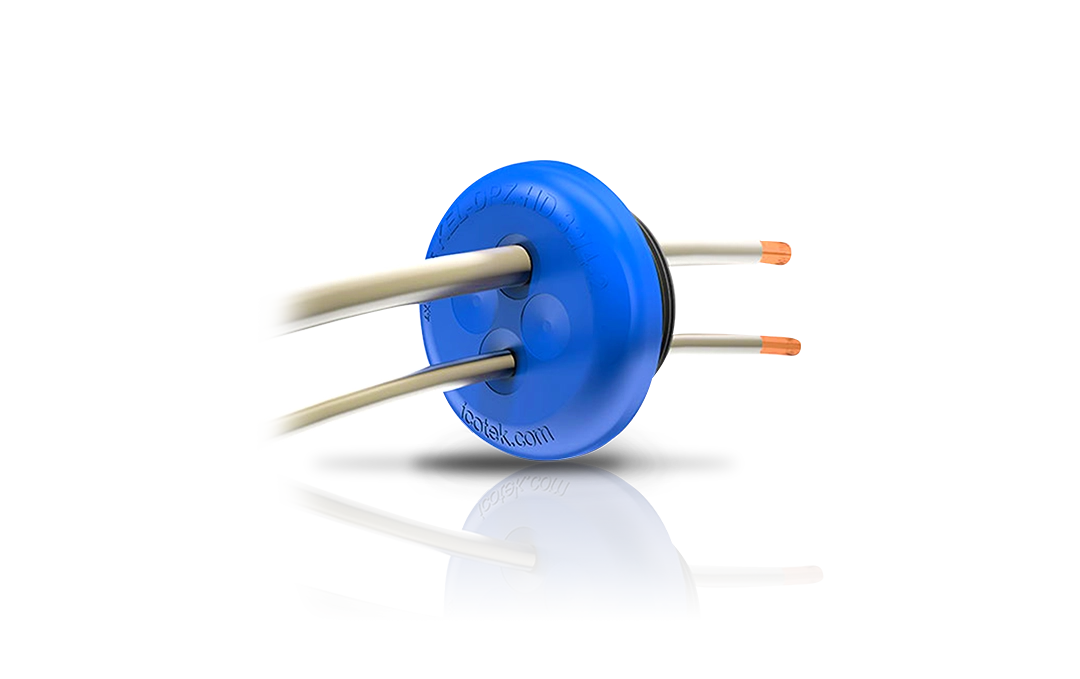

For washdown, cleanroom and food/pharma environments that must pass a hygiene spec. FDA-compliant entries with smooth, visible surfaces and no dirt traps.

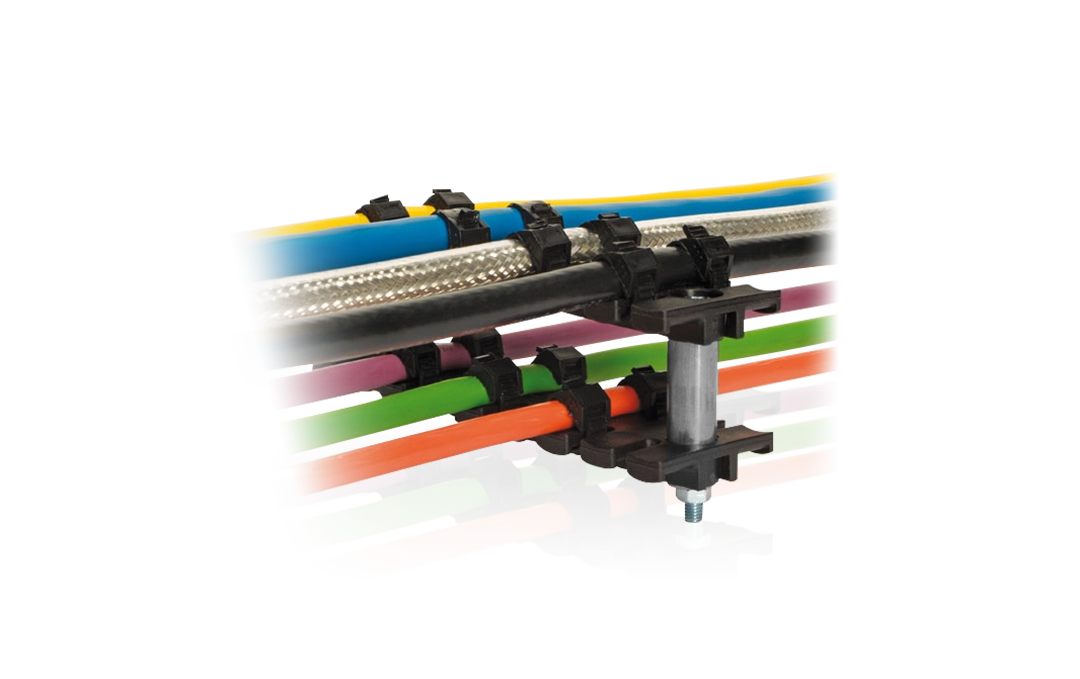

For EMI shielding or dedicated strain relief on the same entry. EMC cable collectors with shielding plus strain-relief entries certified to EN 62444 — the specialist path when a standard entry won't pass the EMC spec.
One cut-out. Every cable, sealed.

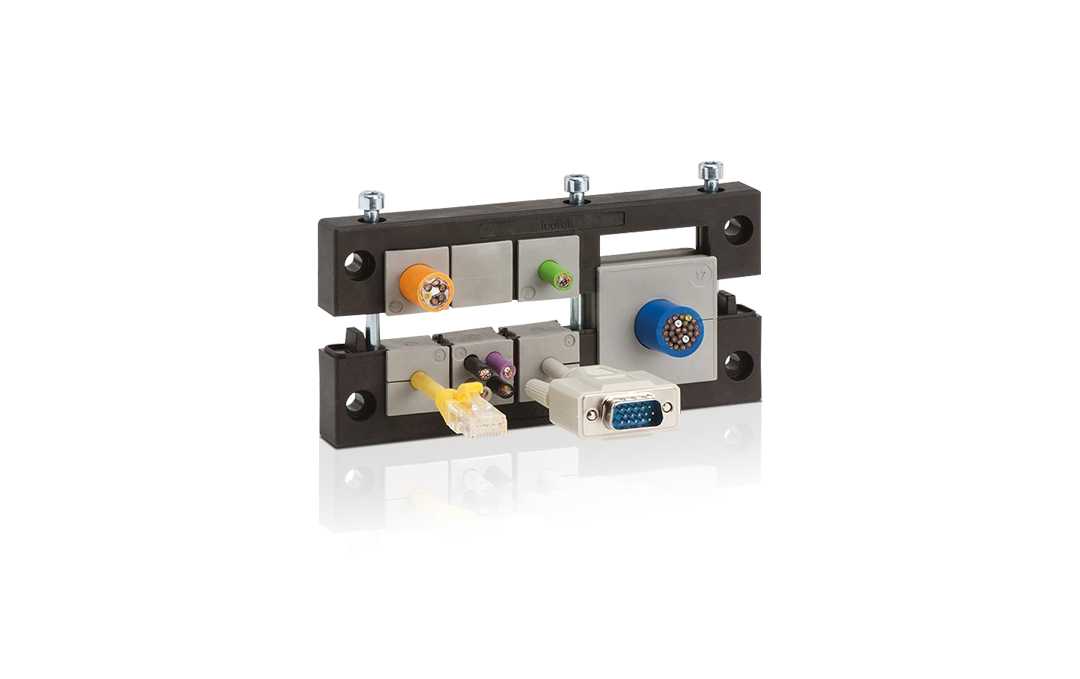

icotek's centrally split KEL frames take KT grommets sized to each cable, so a large number of cables — with connectors or without — route and seal through a single panel cut-out. The split design means you assemble around pre-terminated cables without cutting connectors off.
Quick to assemble for retrofits and maintenance, the frames match the cut-out dimensions of standard 10-, 16- and 24-pin industrial connectors and double as a strain relief on every cable — sealing up to IP66 / UL Type 4X on the KEL-ER series.
Centrally split design
Assemble around pre-terminated cables — no need to cut connectors off.
KT grommets per cable
Slit grommets sized to each cable diameter seal every entry individually.
Up to IP66 / UL Type 4X
The injected-seal KEL-ER series achieves IP66 with single grommets.
Integrated strain relief
Frames act as a strain relief on every cable, certified to EN 62444.
Standard connector cut-outs
Match 10-, 16- and 24-pin industrial connector openings for easy retrofit.
Short videos from the icotek range.
Tap a card to play. KEL frame assembly, grommet selection, membrane plates and EMC strain relief.

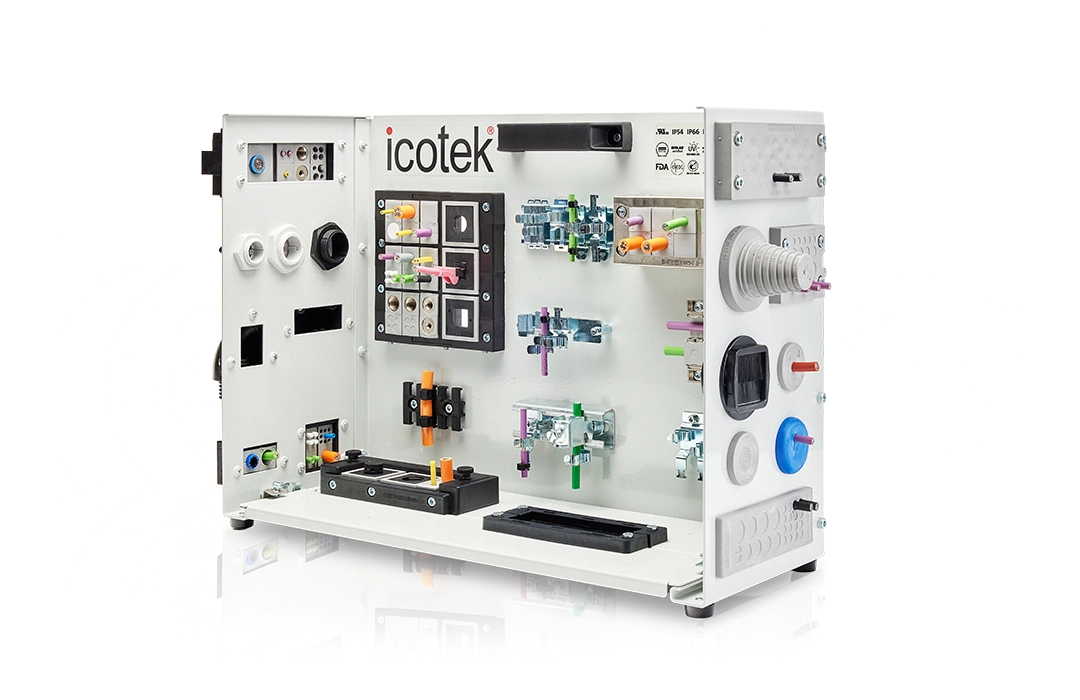

One system for every cable entry.
From split frames and grommets to glands, brush seals, hygienic and EMC entries — the complete icotek range is stocked across Australia through TROPAC. Talk to a PAC to match the right entry to your job, or browse the full range online.
Need help specifying?
Send the team your application and a TROPAC Product Application Consultant will come back with the right icotek product, stock position and account pricing — usually same business day.
- Selection & cross-reference from your current part numbers
- Live stock check across QLD, NSW & VIC
- Trade-account & project pricing
