Relay Termseries Slim Line 12VDC 6A 1CO, Screw Terminals

SKU
$13.04 ex. GST $14.34 inc. GST
In stock
77 in stock across 3 warehouses
Free Shipping

Ask an expert!

Chat Email 1300876722
  • IP Rating IP20
  • Voltage 12V
  • Current 6A
  • Poles 1 Pole
  • Contacts 1CO

Standards & certifications

IP20Ingress protection

Weidmüller TRS 12VDC | Termseries Slim-Line Relay Module, 12 V DC, 6 A, 1CO

The Weidmüller Termseries TRS 12VDC is a slim-line plug-in relay module with a 12 V DC coil, 6 A contact rating, and 1 change-over (SPDT) contact output. Used in automotive, telecommunications, and 12 V system control panels where compact DIN rail relay marshalling is required.

Technical Construction

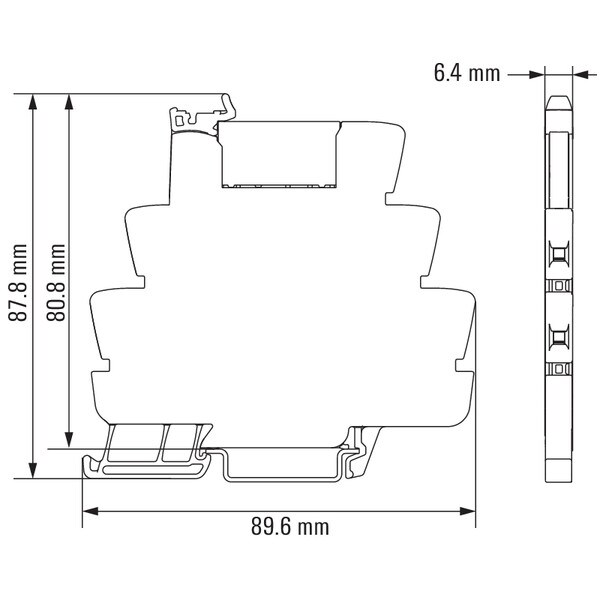

Plug-in module installs into a compatible Termseries screw-connection relay base. LED status indicator, locking retention tab, 6.2 mm slim width. Compatible with SRC-I QV S cross connectors and isolation plate accessories.

Standards (& Conformities): IEC 61810-1. Approvals: UL, CSA, VDE. RoHS compliant.
