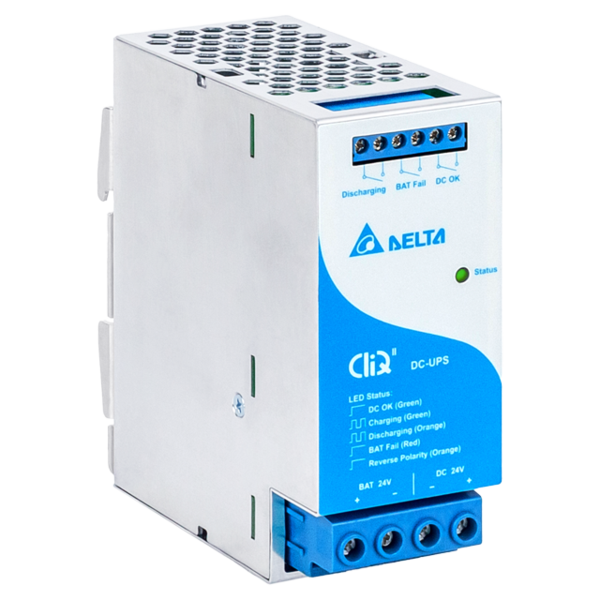

Delta CLIQ II Series UPS Module 24V 40A
Images are for reference only. Refer to datasheets and drawings for accurate specifications.
Details
Delta CLIQ II Series UPS Module 24V 40A
Output Voltage
24V
Output Power
960W
Output Current
40A
Input Voltage Range
24-28Vdc
Dimensions (H x W x D)
121 x 50 x 117.3 mm
4.76” x 1.97” x 4.62”
Unit Weight
0.60 kg (1.32 lb)
Highlights & Features
- Full corrosion resistant aluminium casing
- Suitable for 24V system up to 40A
- Zero switch over time from loss of DC input to battery operation
- Built-in diagnostic monitoring for DC OK, Discharge and Battery Fail by relay contacts
- LED indicator for DC OK, Battery Charging, Battery Discharging, Battery Fail and Battery Reverse Polarity
- High MTBF > 500,000 hrs as per Telcordia SR-332
- Conformal coating option on PCBAs to protect against common dust and chemical pollutants
- Certified according to IEC/EN/UL 62368-1
