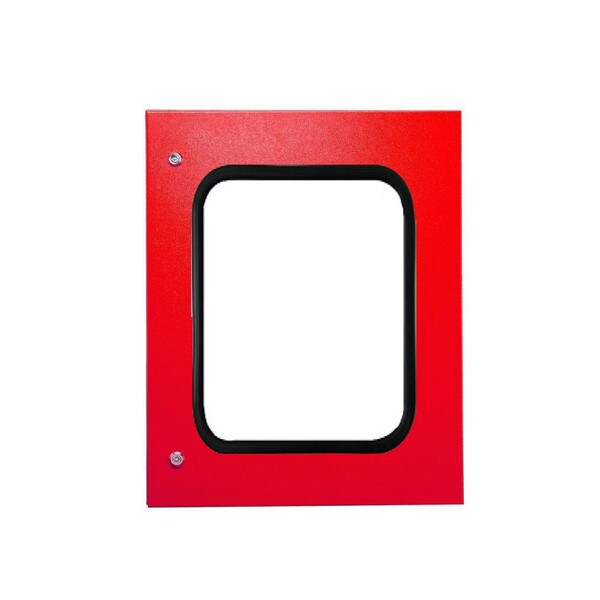

Transparent Door 1000H x 800W IP66 Red
Images are for reference only. Refer to datasheets and drawings for accurate specifications.
Details
Transparent Door 1000H x 800W IP66 Red
IP Enclosures range of transparent doors are rated for protection up to IP66 and can be easily fitted to the IP Enclosures range of electrical enclosures. Transparent Doors are provided as a standard accessory. Simply remove the existing door and replace with a transparent door.
Features and Specifications
Protection: IP66
Standard: IEC/EN/AS60529, RoHS
Material:
Enclosure Door: 1.5mm galvanised steel sheet
Enclosure Seal: Polyurethane
Windows: 4mm Transparent tempered glass
Door:
The surface mounted door is 1.5mm galvanised steel sheet. It incorporates concealed removable hinges with captive pins. Doors are also designed for a 110 opening. The is provided with recessed windows manufactured using 4mm transparent tempered glass with seal.
Seal:
A high quality full perimeter seal provides excellent sealing over a long life. It is machine applied Polyurethane foamed in place (FIP).
Lock:
Chrome 5mm Double Bit Quarter Turn Lock.
Surface Treatment:
UL approved epoxy polyester powder-coated with a textured finish. 80-120 micron average thickness. Colour R13 Signal Red.
Window Dimensions:
790mmH x 590mmW
Note: Please choose product carefully. Product selection is the responsibility of the 'Purchaser'. Refer to relevant Standards, project requirements and technical specifications to ensure that the product meets requirements. For more information on product selection, refer to this link.
