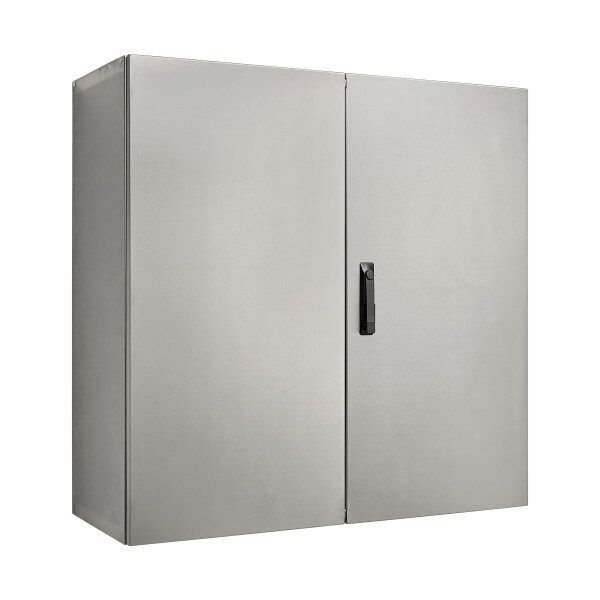

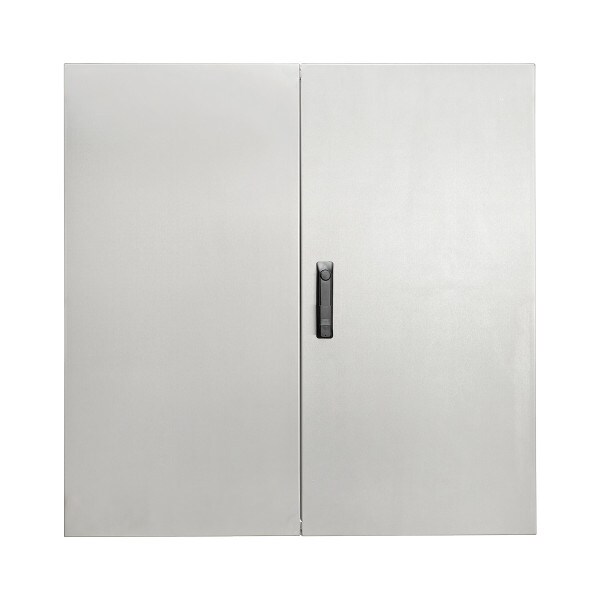

316 Stainless Steel Electrical Enclosure 1200H x 1200W x 300D IP55

$3,737.40
 inc. GST
SKU: IP-SS12012030
BRAND: IP Enclosures

This item is IN STOCK

Current Stock: 2

QLD: 0 in stock
NSW: 2 in stock
VIC: 0 in stock

Details

316 Stainless Steel Electrical Enclosure 1200H x 1200W x 300D IP55

IP Enclosures SS2 range of stainless steel electrical enclosures are rated for protection up to IP55. This range is wall-mounted, grade 316 stainless steel, single door construction suitable for extreme duty applications.

Features and Specifications

Protection: IP55 IK10, NEMA 4x (Independent accredited test laboratory).

Standard: IEC 62208, IEC/EN/AS60529, (UL 508A Optional), RoHS

Material:

Body: 1.5mm Grade 316/316L Stainless Steel (Optional 304)
Door: 1.5mm Grade 316/316L Stainless Steel (Optional 304)
Device Mounting Plate: 1.5mm Galvanised Steel Sheet
Seal: Polyurethane

Surface Finish:

0.4 micron Ra surface brushed finish

Enclosure Body:

The monoblock body is fabricated using 1.5mm Grade 316/316L Stainless Steel. Flat face sealing surfaces are provided to increase seal life. Pre-fitted blind nutserts are incorporated to accommodate mounts and accessory fasteners to eliminate drilling and retain IP rating. Integral device plate mounts and M6 earth studs are provided. Cutting, pressing and full continuous seam welding using precision automated manufacturing equipment ensures accuracy and consistent high quality.

Enclosure Doors:

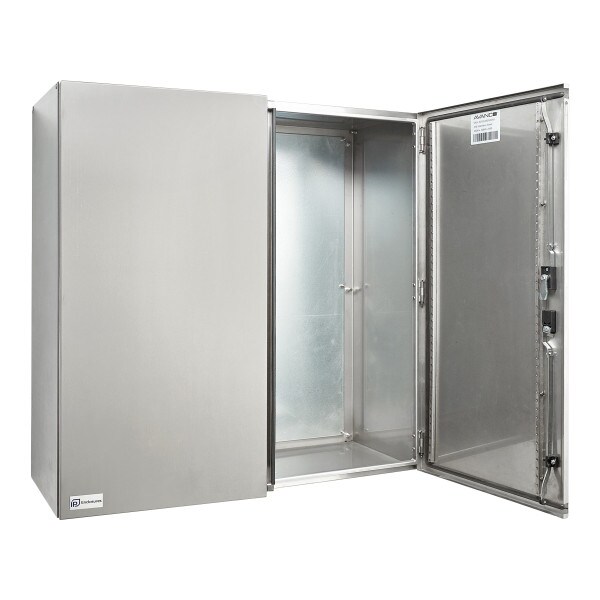

The surface mounted doors are 1.5mm Grade 316/316L Stainless Steel (Grade 304 is also available) and incorporates concealed removable hinges with captive pins. The doors are designed to eliminate the central mullion to improve accessibility into the enclosure. Doors are designed for a 110° opening. Each door contains integral cable management rail studs and M6 earth studs. The cable management rails are removable to provide more space for control components.

Enclosure Seal:

A high quality machine-applied full perimeter UL listed Polyurethane seal foamed in place (FIP) provides excellent sealing over a long life. Temperature resistance -40°C to 80°C (160°C short term loading).

Enclosure Lock:

3 point locking system with key-lock swing handle.

Device Mounting Plate:

The device mounting plate is 1.5mm galvanised steel sheet. It is pressed to provide strength. It is pre-fitted into the enclosure as standard.


Note: Please choose product carefully. Product selection is the responsibility of the “Purchaser”. Refer to relevant Standards, project requirements and technical specifications to ensure that the product meets requirements. For more information on product selection, refer to https://www.ipenclosures.com.au/electrical-enclosure-selection/
