304 Stainless Steel Electrical Enclosure 1000H x 1000W x 400D IP55

$2,629.23
 inc. GST
SKU: IP-304-10010040
BRAND: IP Enclosures

Order In - Contact Us for lead time

QLD: 0 in stock
NSW: 0 in stock
VIC: 0 in stock

Details

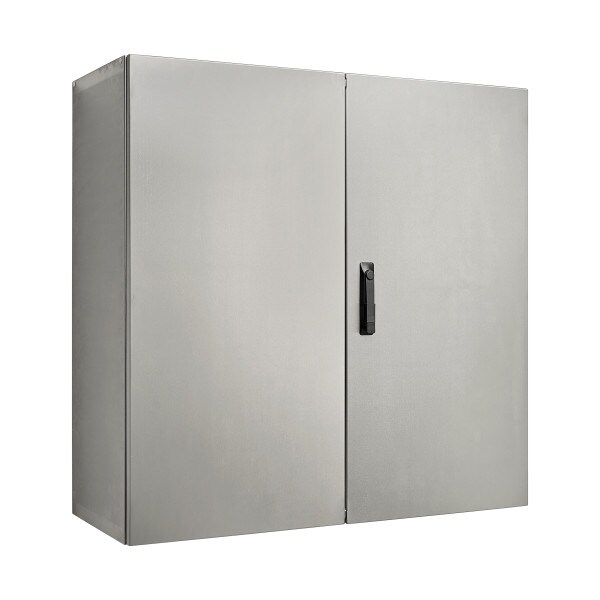

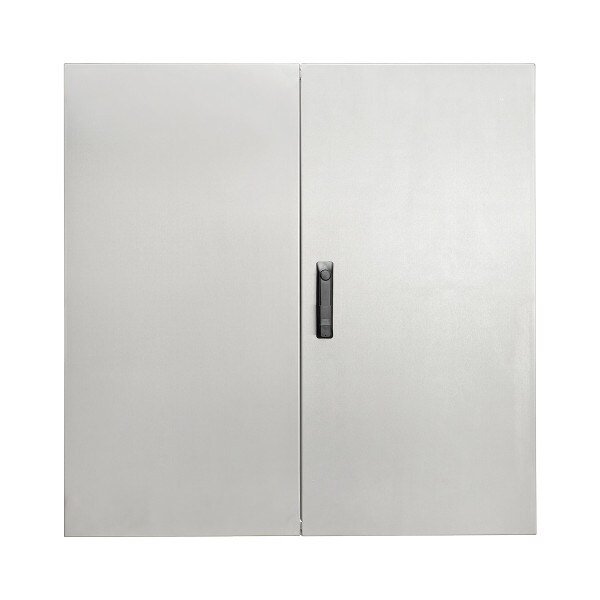

304 Stainless Steel Electrical Enclosure 1000H x 1000W x 400D IP55

IP Enclosures S2 Grade 304 stainless steel electrical enclosures are rated for protection up to IP55. This range is wall-mounted, grade 304 stainless steel, double door construction suitable for extreme duty applications.

Features & Specifications

Protection: IP55 IK10, NEMA 4x (Independent accredited test laboratory).

Standard: IEC 62208, IEC/EN/AS60529, (UL 508A Optional), RoHS

Conforming and certified to IEC 62208 – ‘Empty enclosures for low voltage switch gear and control gear assemblies’.

Material:

Body: 1.5mm Grade 304 Stainless Steel
Door: 1.5mm Grade 304 Stainless Steel
Device Mounting Plate: 1.5mm Galvanised Steel Sheet
Seal: Polyurethane

Surface Finish:

0.4 micron Ra surface brushed finish

Enclosure Body:

The robust monoblock body is fabricated using 1.5mm Grade 304 Stainless Steel. Flat face sealing surfaces are provided to increase seal life. Pre-fitted blind nutserts are incorporated to accommodate mounts and accessory fasteners to eliminate drilling and retain IP rating. Integral device plate mounts and M6 earth studs are provided. Cutting, pressing and full continuous seam welding using precision automated manufacturing equipment ensures accuracy and consistent high quality.

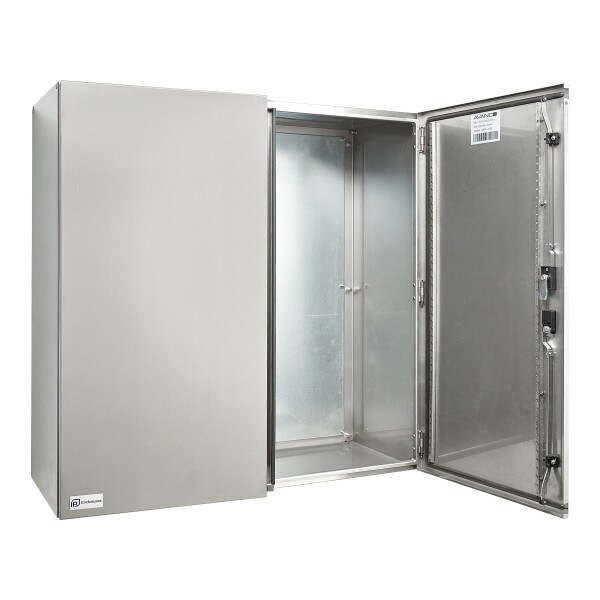

Enclosure Doors:

The surface mounted doors are 1.5mm Grade 304 Stainless Steel and incorporates concealed removable hinges with captive pins. The doors are designed to eliminate the central mullion to improve accessibility into the enclosure. Doors are designed for a 110° opening. Each door contains integral cable management rail studs and M6 earth studs. The cable management rails are removable to provide more space for control components.

Enclosure Seal:

A high quality machine-applied full perimeter UL listed Polyurethane seal foamed in place (FIP) provides excellent sealing over a long life. Temperature resistance -40°C to 80°C (160°C short term loading).

Enclosure Lock:

3 point locking system with key-lock swing handle.

Device Mounting Plate:

The device mounting plate is galvanised steel sheet. It is pressed to provide strength and is pre-fitted into the enclosure.


Note: Please choose product carefully. Product selection is the responsibility of the “Purchaser”. Refer to relevant Standards, project requirements and technical specifications to ensure that the product meets requirements. For more information on product selection, refer to https://www.ipenclosures.com.au/electrical-enclosure-selection/
