Filter Fan 250 x 250 255m3/hr 230V

$211.33
 inc. GST
SKU: IP-V4300
BRAND: IP Enclosures

This item is IN STOCK

Current Stock: 105

QLD: 60 in stock
NSW: 35 in stock
VIC: 10 in stock
Back

Details

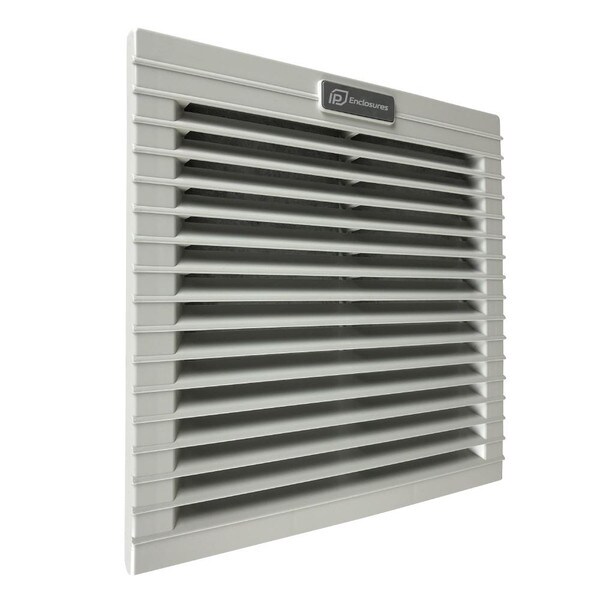

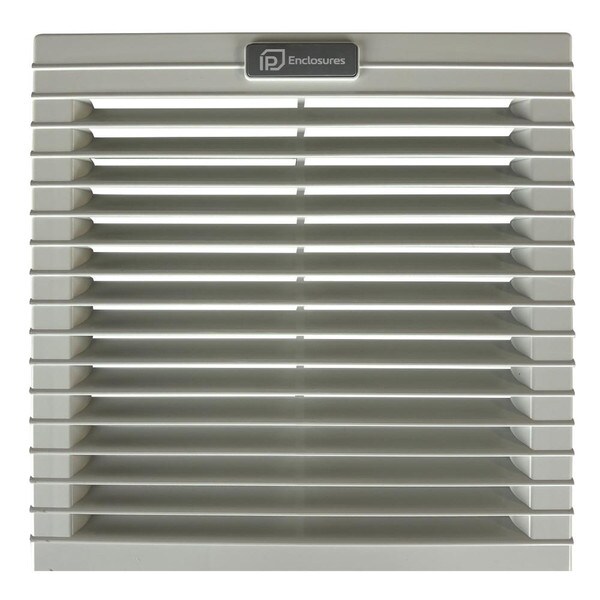

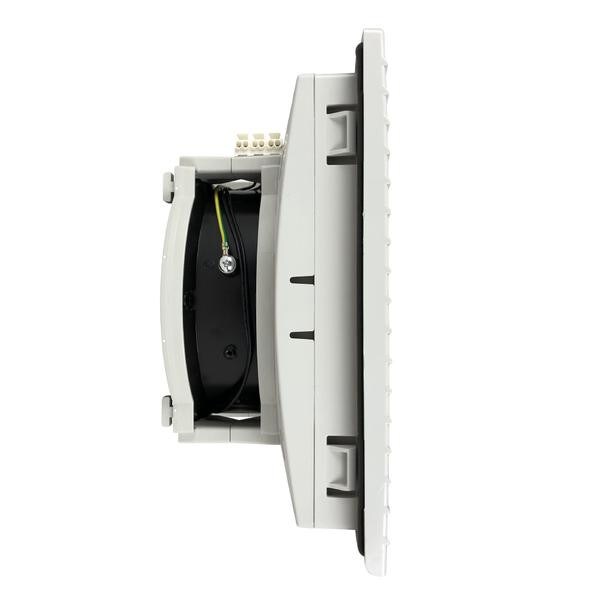

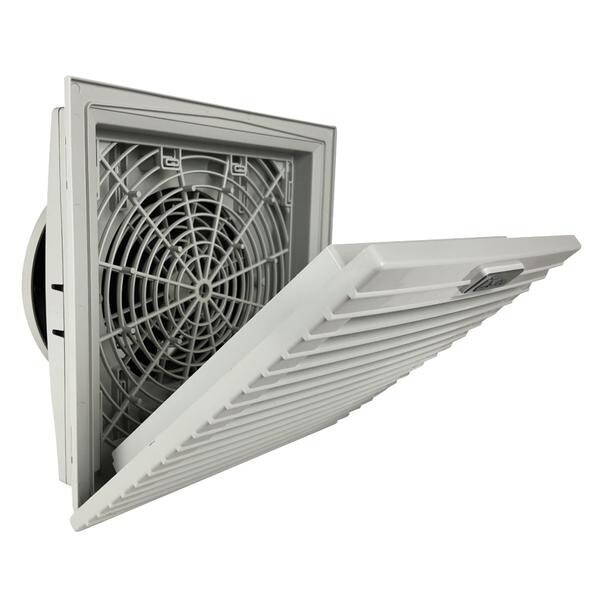

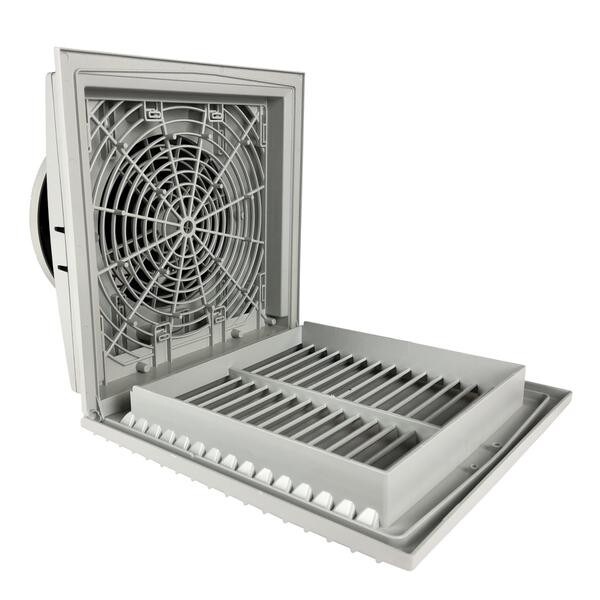

Filter Fan 250 x 250 255m3/hr 230V

High quality Italian filter fan unit for electrical enclosures.

G3 Filter Mat Included.

FeaturesUnitIP-V4300
Air flow rate (free blow)m³/h255 (290)
Flow rate with exit filterm³/h202 (235)
Power supplyV/Hz230 / 50-60
Dimensions HxLxPmm250x250x128
Power consumptionW40 (38)
Current consumptionA0.17 (0.16)
Overcurrent consumption–thermal
Electric connection–3-poles spring terminals
Duty cycle–100%
Operating temperature°C– 10 / +70 (+14 / +158)
Protection degree/class–IP54/Class I
Noise leveldB(A)53 (58)
Flow direction–reversible: default factory setting outside-in
Bearing–ball
Filter mat (Eurovent)–G3
Service life (at 40°C)hr50 000
Material–ABS UL94V-0 Color RAL7035
Wall thicknessmm1.2-2.4
Gasket–foam seal gasket
Weight (with packaging)kg1.72 (1.92)
Package dimensionsmm270x270x165
Montaggio–fast clip-on
Cut-Out dimensionsmm224×224
Conformity/Approvals–CE
