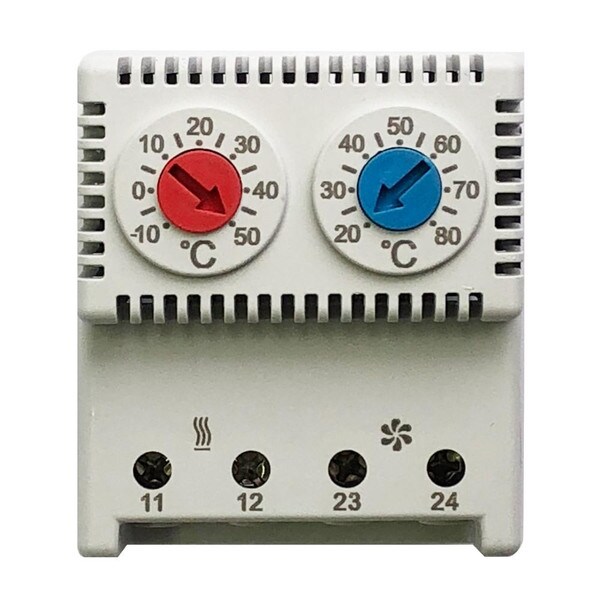

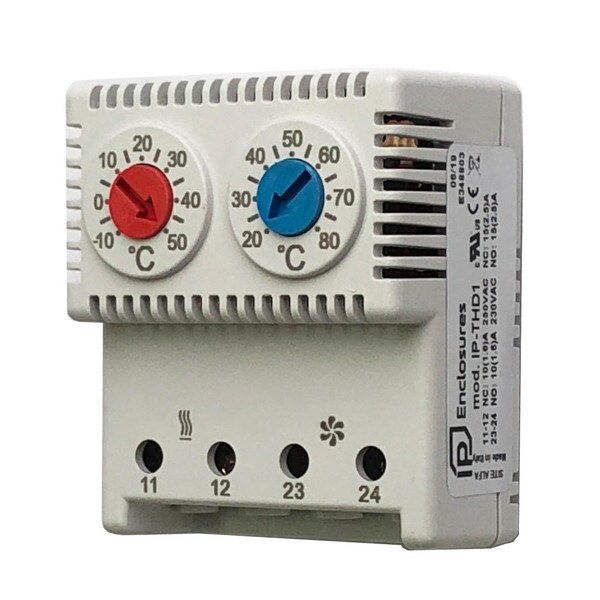

Double Thermostat for Fan & Heater NC NO, -10/+50 +20/+80°C
Details
Double Thermostat for Fan & Heater NC NO, -10/+50 +20/+80°C
High quality Italian compact double thermostat for 35mm DIN rail mounting. Based on bimetallic junction, provides high capacity and separated normally open and normally closed contacts. Suitable for controlling ventilation filter fan units.
| Features | Unit | IP-THD1 |
|---|---|---|
| Contact function | – | N/C | N/O Consumable |
| Temperature setting range | °C | -10/+50 | +20/+80 |
| Precision | °C | ±4 |
| Hysteresis | °C | 7 |
| Max. switching current: | – | |
| at 250Vac resistive load (inductive load) | A | 10 (1.6) |
| at 125Vac resistive load (inductive load) | A | 15 (2.5) |
| Max. switching power in Vdc | W | 30 |
| Temperature sensor type | – | Thermostatic bimetal |
| Contact type | – | Snap action |
| Contact resistance | mOhm | < 10 |
| Service life | cycles | > 100.000 |
| Electrical connections | – | 2-pole terminal for 2.5 mm² wire |
| Casing | – | PA6 ; UL94 V0 self-estinguishing ; light grey RAL 7035 |
| Protection degree EN60529 | – | IP20 |
| Operating temperature | °C(°F) | -25/+80 (-13/+176) |
| Storage temperature | °C(°F) | -45/+80 (-49/+176) |
| Mounting | – | Clip for mounting on DIN rail 35 mm EN50022 |
| Installation position | – | variable |
| Conformity | – | CE – UL  File n.E348803 |
| Dimensions HxWxD | mm | 61x53x35 |
| Weight | g | 80 |
