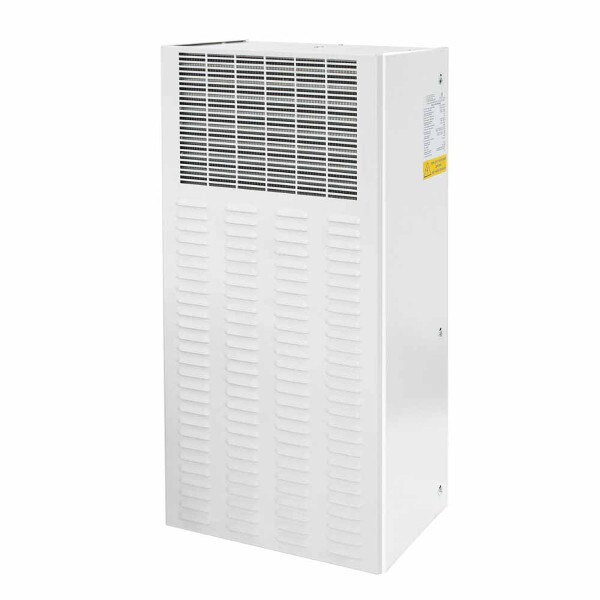

Air Conditioner Outdoor Wall Mounted IP55 230V 850W, 304SS Housing with Alarm, Door Interlock, RS485 Interface & Condensate Drain
Images are for reference only. Refer to datasheets and drawings for accurate specifications.
Details
AIR CONDITIONER OUTDOOR WALL MOUNTED IP55 230V 850W, 304SS HOUSING WITH ALARM, DOOR INTERLOCK, RS485 INTERFACE & CONDENSATE DRAIN
IP Enclosures Italian vertical-mount compact air conditioners designed for the cooling needs of outdoor electrical cabinets. They are optimised for door or side-panel mounting and have been designed for high efficiency and low maintenance. Outdoor models include a special cover designed to protect internal components, a condenser fan controller and pressure controller for the compressor. The outdoor range has been designed to provide protection in the harshest outdoor conditions.
| Features | Unit | IP-ACOWM085 |
|---|---|---|
| Power supply | V/Hz | 230V/1ph/50-60 |
| Dimensions HxWxD | mm | 635x305x210 |
| Cooling capacity EN814 A35A35 | W | 850/900 |
| Cooling capacity EN814 A35A50 | W | 625/650 |
| Air flow rate (free blow) | ||
| inside | m3/h | 600/625 |
| outside | m3/h | 600/625 |
| Max current | A | 2.65/2.75 |
| Delayed fuse | A | 6 |
| Absorbed electric power EN814 A35A35 | W | 450/470 |
| Absorbed electric power EN814 A35A50 | W | 530/560 |
| Refrigerant (type/charge) | kg | R134a/0.3 |
| Maximum Pressure | bar | 25 |
| Operating temperature (ambient) | °C | +20/+55 |
| Operating temperature (enclosure) | °C | +20/+45 |
| Temperature controller (factory set at 35°C) | – | Integrated mechanical thermostat |
| Compressor type | – | Rotative compressor |
| Noise level | dB(A) | 62 |
| Electrical connection | – | Three-pole connector |
| Protection degree EN60529/1 enclosure inside | – | IP55 |
| Protection degree EN60529/1 ambient inside | – | IP34 |
| Weight (with packaging) | Kg | 23(24) |
| Colour | – | RAL 7035 |
| Conformity/Certifications | – | CE |
