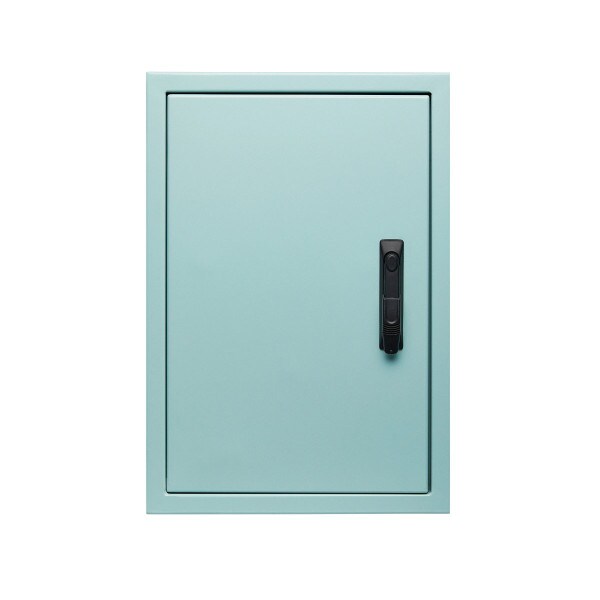

Aluminium Field Cabinet 650H x 450W x 320D IP66 Smoke-Blue, Non-Ventilated

$1,328.59
 inc. GST
SKU: IP-A654532-0-T33
BRAND: IP Enclosures

This item is IN STOCK

Current Stock: 4

QLD: 4 in stock
NSW: 0 in stock
VIC: 0 in stock

Details

Aluminium Field Cabinet 650H x 450W x 320D IP66 Smoke-Blue, Non-Ventilated

IP Enclosures Pole-Mounted Aluminium Field Cabinets are designed to house sensitive data network and electrical equipment for a variety of heavy duty outdoor applications including general industrial, infrastructure, road/traffic management and intelligent transport systems.

Features and Specifications

Protection: IP66
Standard: IEC62208, IEC/EN/AS60529, RoHS

Material:

Body: 2.5mm Marine Grade Aluminium
Door: 2.5mm Marine Grade Aluminium
19” Data Rack Rails: 1.5mm galvanised steel sheet (for 12RU unit only)
Enclosure Seal: Polyurethane

Body:

The monoblock body is fabricated using 2.5mm marine grade aluminium. Precision automated manufacturing equipment ensures accuracy and consistent high quality. Flat face sealing surfaces increase seal life. Integral device plate mounts and M6 earth stud are included.

Doors:

The front door is fabricated using 2.5mm marine grade aluminium and is designed to provide flush recessed mounting to prevent vandalism and unauthorised access. The door incorporates concealed removable hinges with captive pins. It is hinged on the left side, designed for a 110° opening and is provided with a heavy duty door stay. An A4 plan pocket is provided.

19″ Data Rack Rails (for 12RU unit only):

Front and rear 19″ data rack rails are fabricated from 1.5mm galvanised steel sheet.

Seals:

High quality Polyurethane foamed in place (FIP) full perimeter door seals provide excellent sealing over a long life.

Lock:

The door includes a 3 point locking system with key-lock swing handle.

Device Mounting Plate:

The device mounting plate is 1.5mm galvanised steel sheet. It is pressed to provide strength. It is pre-fitted into the enclosure as standard. Powder coated RAL9010 pure white.

Surface Treatment:

UL approved epoxy polyester powder-coated with a textured finish. 80-120 micron average thickness. Colour T33 Smoke-Blue.
