Field Cabinet 42U/RU 2275H x 750W x 800D IP55 Smoke-Blue, Ventilated
Details
Field Cabinet 42U/RU 2275H x 750W x 800D IP55 Smoke-Blue, Ventilated
IP Enclosures Plinth-Mounted Field Cabinets are designed to house sensitive data network and electrical equipment for a variety of heavy duty outdoor applications including road/traffic management and intelligent transport systems.
Features and Specifications
Protection: IP66 IK10, NEMA 4 (Non-ventilated range); IP55 IK10 NEMA 4 (Ventilated range).
Standard: IEC62208, IEC/EN/AS60529, EIA-310-D, RoHS
Material:
Body and Plinth: 2.0mm galvanised steel sheet
Doors: 2.0mm galvanised steel sheet
19” Data Rack Rails: 1.5mm galvanised steel sheet
Gland Plate: 3.0mm aluminium
Enclosure Seal: Polyurethane
Body:

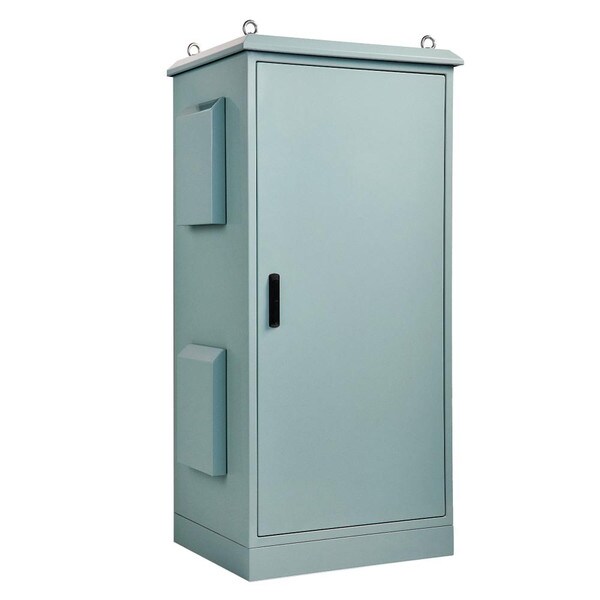

The monoblock body is fabricated using 2.0mm galvanised steel sheet. The body is fitted with rain hood/sunshield, plinth, vent hoods and 4 x lifting eye bolts. Flat face sealing surfaces are provided to increase seal life. A 3.0 mm galvanised steel split gland plate is also incorporated into the bottom face. Four cutouts 125mm x 125mm are provided to house fans and filters and each are covered with removable vent hoods. Precision automated manufacturing equipment ensures accuracy and consistent high quality. (Fans and filters and ordered separately).
Doors:

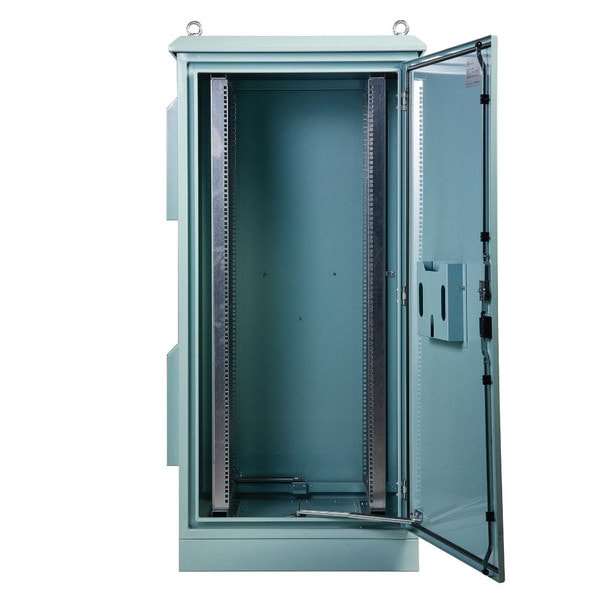

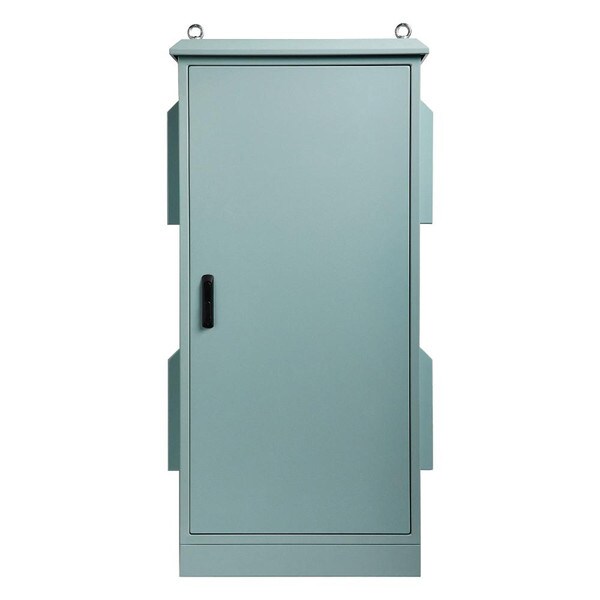

The front and rear doors are fabricated using 2.0mm galvanised steel sheet and are designed to provide flush recessed mounting to prevent vandalism and unauthorised access. The doors incorporate concealed removable hinges with captive pins. They are designed for a 110° opening and are provided with heavy duty door stays.
19″ Data Rack Rails:

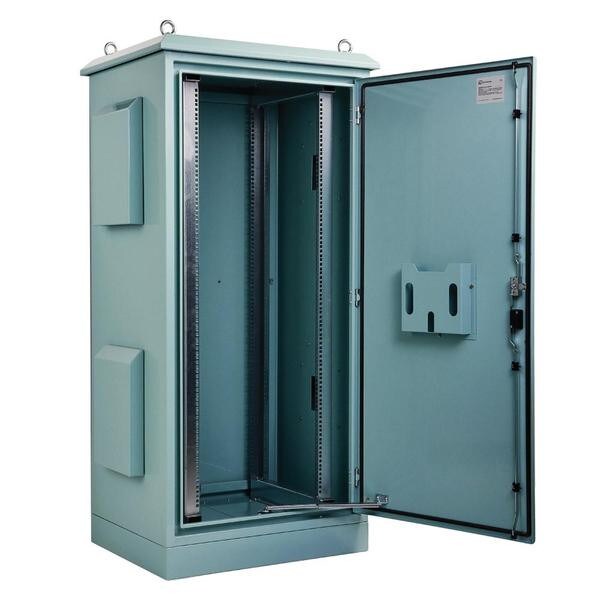

Front and rear 19″ data rack rails are fabricated from 1.5mm galvanised steel sheet.
Seals:
High quality Polyurethane foamed in place (FIP) full perimeter door seals provide excellent sealing over a long life.
Locks:
Each door includes a 3 point locking system with key-lock swing handle.
Gland Plate:
3mm aluminium split gland plates are incorporated into the bottom of the enclosure for cable management.
Surface Treatment:
UL approved epoxy polyester powder-coated with a textured finish. 80-120 micron average thickness. Colour T33 Smoke-Blue.
