316 Stainless Steel Sloping Roof Electrical Enclosure 600H x 600W x 300D IP66, Heavy Duty
Details

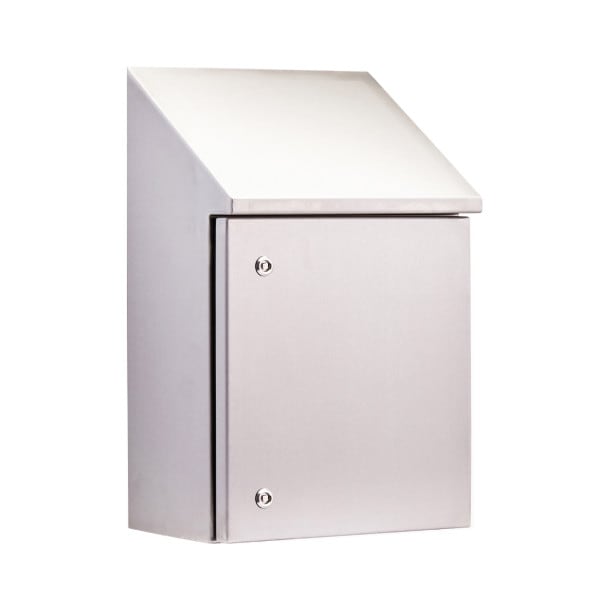

316 Stainless Steel Sloping Roof Electrical Enclosure 600H x 600W x 300D IP66, Heavy Duty
IP Enclosures Heavy Duty Stainless Steel Sloping Roof Electrical Enclosures are designed to house a variety of electrical switch and control equipment while preventing build-up of dust, debris and waste material in extreme environments.
Features & Specifications
Protection: IP66 IK10, NEMA 4 (Independent accredited test laboratory).
Standard: IEC 62208, IEC/EN/AS60529, (UL508A Optional), RoHS
Conforming and certified to IEC 62208 – ‘Empty enclosures for low voltage switch gear and control gear assemblies’.
Material:
Body: 2.0 316 Stainless Steel
Door: 2.0 316 Stainless Steel
Device Mounting Plate: Galvanised steel sheet
Seal: Polyurethane
Enclosure Body:
The monoblock body with sloping roof is fabricated using 2mm 316 Stainless Steel sheet. Flat face sealing surfaces are provided to increase seal life. Pre-fitted blind nutserts are incorporated to accommodate mounting. The roof consists of a 38° sloped roof design that protrudes past pushbuttons for the mining industry. Integral device plate mounts and M6 earth stud is provided.

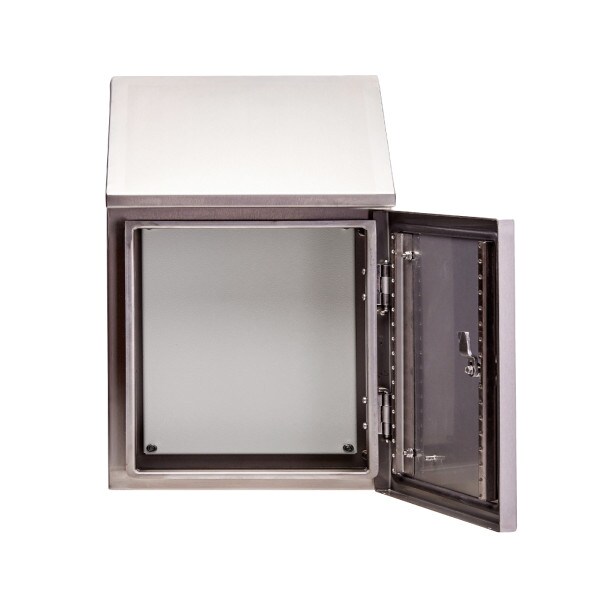

Enclosure Door:
The surface mounted door is fabricated using 2mm 316 Stainless Steel sheet and incorporates concealed removable hinges with captive pins. The door is designed for a 110° opening. Each door contains cable management rails, an M6 earth stud and a high quality machine-applied foamed in place (FIP) Polyurethane seal.
Enclosure Seal:
A high quality machine-applied full perimeter UL listed Polyurethane seal foamed in place (FIP) provides excellent sealing over a long life. Temperature resistance -40°C to 80°C (160°C short term loading).
Enclosure Lock:
316 stainless steel 8mm square lock.
Device Mounting Plate:
The device mounting plate is galvanised steel sheet. It is pressed to provide strength. It is pre-fitted into the enclosure as standard.
Note: Please choose product carefully. Product selection is the responsibility of the “Purchaser”. Refer to relevant Standards, project requirements and technical specifications to ensure that the product meets requirements. For more information on product selection, refer to https://www.ipenclosures.com.au/electrical-enclosure-selection/
