316 Stainless Steel HMI Enclosure 400H x 600W x 150D IP66
Details

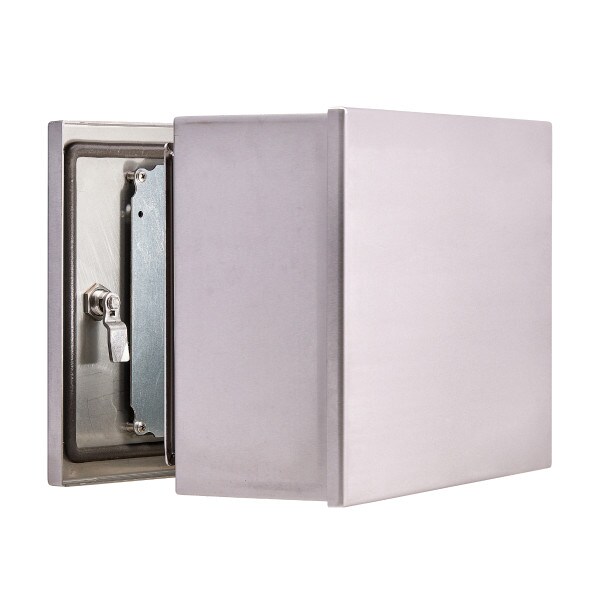

316 Stainless Steel HMI Enclosure 400H x 600W x 150D IP66
IP Enclosures HMI Enclosures range is an aesthetic and ergonomic control panel system. The simplified flat front panel is designed to mount operator interfaces. Access is via a lockable rear door incorporating a device mounting plate. HMI Enclosures are designed for use with IP Enclosures Support Arm Systems.
Features & Specifications
Protection: IP66
Standard: AS/EN/IEC60529, RoHS
Material:
Enclosure Body: 316 stainless steel
Enclosure Door: 316 stainless steel
Enclosure Front Panel: 316 stainless steel
Enclosure Seal: Polyurethane
Body:
The monoblock body is fabricated using 316 stainless steel sheet. Cutting, pressing and full continuous seam welding using precision automated manufacturing equipment ensures accuracy and consistent high quality. Flat face sealing surfaces are provided to increase seal life. M6 earth studs and equipment mounting studs are provided.
Door:
The surface mounted door is fabricated using 316 stainless steel sheet and incorporates concealed removable hinges with captive pins. The door is designed for a 110° opening. The door contains an integral device mounting plate and a high quality machine-applied foamed in place (FIP) Polyurethane seal.
Front Panel:
The front panel is fabricated using 316 stainless steel sheet. It is removable via internal fasteners to cut or machine holes to mount HMI’s and operator devices. Sealing is achieved via a high quality
machine-applied foamed in place (FIP) Polyurethane seal.
Seals:
A high quality machine-applied full perimeter UL listed Polyurethane seal foamed in place (FIP) provides excellent sealing over a long life. Temperature resistance -40°C to 80°C (160°C short term loading).
Lock:
Grade 316 stainless steel 8mm square quarter turn lock with key.
